SKU: 32314-CDX

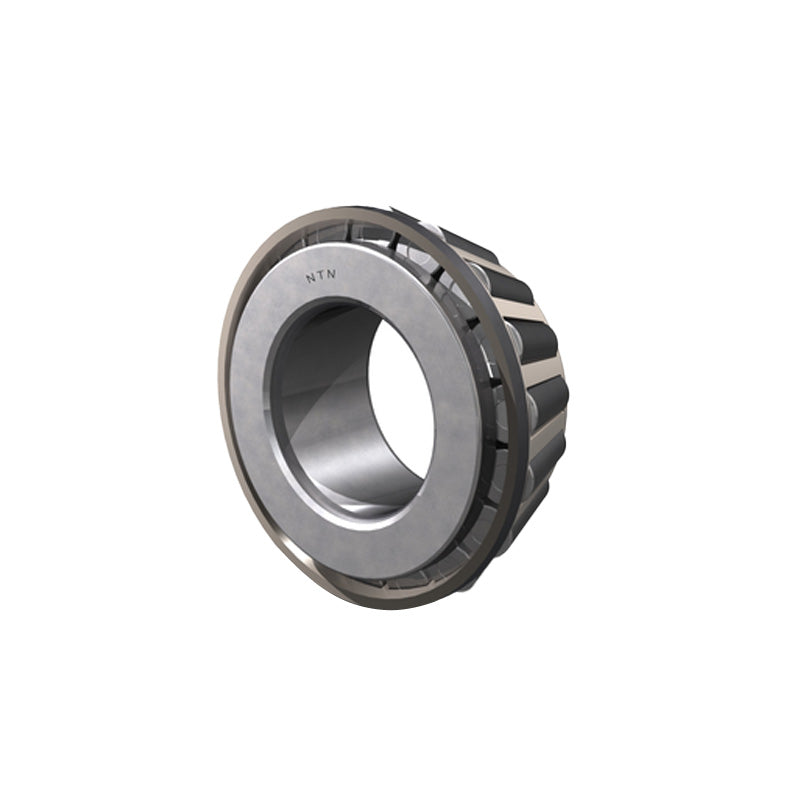

Codex 32314 Metric Single Row Taper Roller Bearing 70x150x54mm
Codex 32314 Metric Single Row Taper Roller Bearing 70x150x54mm
Regular price
CHF 111.00
ex VAT
Regular price
Sale price
CHF 111.00
ex VAT
In stock
Price Break
10+
CHF 88.36
19+
CHF 83.40
29+
CHF 82.40
39+
CHF 81.41
49+
CHF 80.42
74+
CHF 79.42
99+
CHF 74.46
199+
CHF 73.47
249+
CHF 72.47
499+
CHF 71.48
999+
CHF 69.50
Description
Description
|
Codex Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 54mm
- Seals / Shields:
- None
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| T | 54mm |
| Dynamic load | 297 kN |
| Static load | 380 kN |
| Fatigue load limit Pu | 45 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 4500 rpm |
| Weight | 4.3 kg |
| d1 | 106mm |
| B | 51mm |
| C | 42mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 36mm |
| da max | 86mm |
| db min | 82mm |
| Da min | 125mm |
| Da max | 138mm |
| Db min | 140mm |
| Ca min | 6mm |
| Cb min | 12mm |
| ra max | 2.5mm |
| rb max | 2mm |
| e | 0.35 |
| Y | 1.7 |
| Y0 | 0.9 |
