SKU: 32316CU-NTN

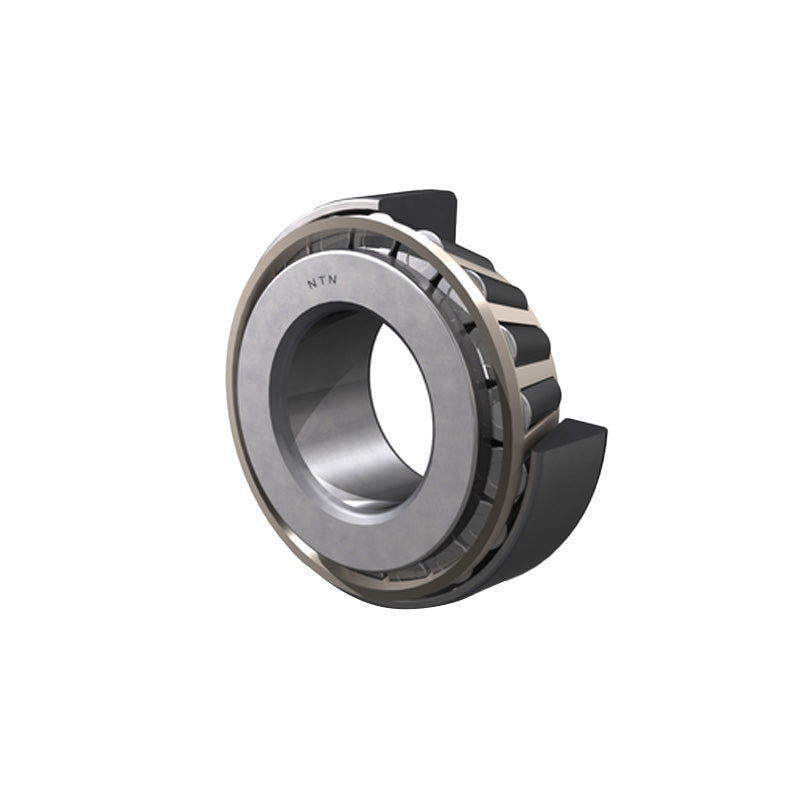

NTN 32316CU Tapered Roller Bearing Cup and Cone Set 80x170x61.5mm
NTN 32316CU Tapered Roller Bearing Cup and Cone Set 80x170x61.5mm
Regular price
CHF 346.48
ex VAT
Regular price
Sale price
CHF 346.48
ex VAT
In stock
Price Break
10+
CHF 308.37
19+
CHF 291.04
29+
CHF 287.58
39+
CHF 284.11
49+
CHF 280.65
74+
CHF 277.18
99+
CHF 259.86
199+
CHF 256.40
249+
CHF 252.93
499+
CHF 249.47
999+
CHF 242.54
Couldn't load pickup availability
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 61.5mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 170mm |
| T | 61.5mm |
| B | 58mm |
| C | 48mm |
| r<sub>s</sub> min | 3mm |
| r<sub>ls</sub> min | 2.5mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 390kN |
| Static load C<sub>or</sub> | 505kN |
| Fatigue Load limit C<sub>u</sub> | 58kN |
| Allowable Speed in grease | 2200rpm |
| Allowable Speed in oil | 2900rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 5GD |
| d<sub>a</sub> min | 94mm |
| d<sub>b</sub> max | 96mm |
| D<sub>a</sub> max | 158mm |
| D<sub>a</sub> min | 127.5mm |
| D<sub>b</sub> min | 162mm |
| S<sub>a</sub> min | 4mm |
| S<sub>b</sub> min | 13.5mm |
| r<sub>as</sub> max | 2.5mm |
| r<sub>1as</sub> max | 2mm |
| Load center a | 50.5mm |
| Constant e | 0.55mm |
| Y<sub>2</sub> | 1.1mm |
| Y<sub>0</sub> | 0.6mm |
| Weight | 6.61kg |
