SKU: 32316U-NTN

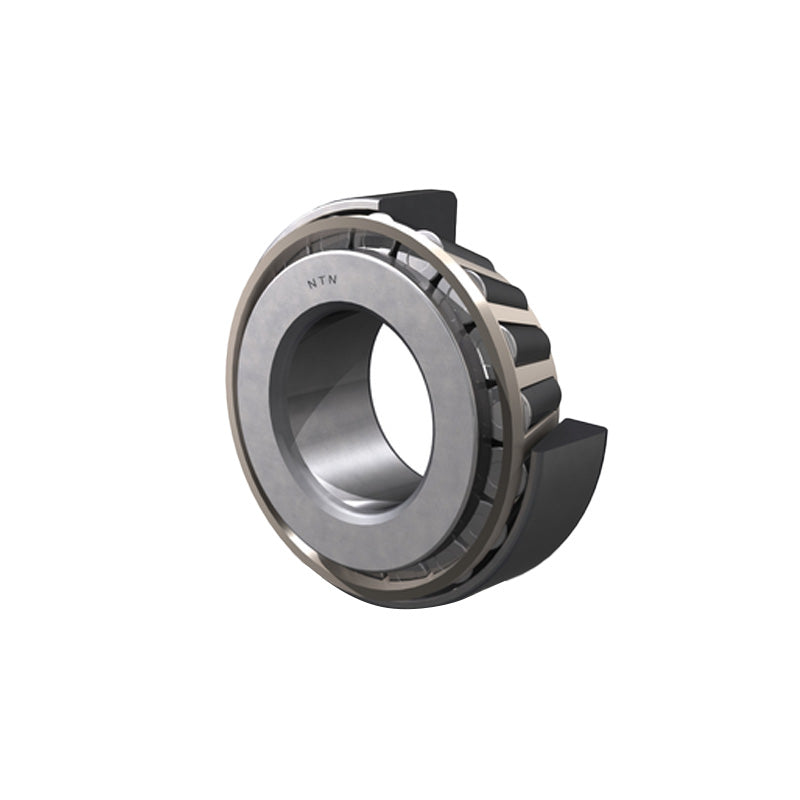

NTN 32316U Tapered Roller Bearing Cup and Cone Set 80x170x61.5mm
NTN 32316U Tapered Roller Bearing Cup and Cone Set 80x170x61.5mm
Regular price
CHF 266.52
ex VAT
Regular price
Sale price
CHF 266.52
ex VAT
In stock
Price Break
10+
CHF 237.20
19+
CHF 223.88
29+
CHF 221.21
39+
CHF 218.55
49+
CHF 215.88
74+
CHF 213.22
99+
CHF 199.89
199+
CHF 197.22
249+
CHF 194.56
499+
CHF 191.89
999+
CHF 186.56
Couldn't load pickup availability
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 61.5mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 170mm |
| T | 61.5mm |
| B | 58mm |
| C | 48mm |
| r<sub>s</sub> min | 3mm |
| r<sub>ls</sub> min | 2.5mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 440kN |
| Static load C<sub>or</sub> | 525kN |
| Fatigue Load limit C<sub>u</sub> | 60kN |
| Allowable Speed in grease | 2300rpm |
| Allowable Speed in oil | 3000rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 2GD |
| d<sub>a</sub> min | 94mm |
| d<sub>b</sub> max | 97mm |
| D<sub>a</sub> max | 158mm |
| D<sub>a</sub> min | 138.5mm |
| D<sub>b</sub> min | 161.5mm |
| S<sub>a</sub> min | 4mm |
| S<sub>b</sub> min | 13.5mm |
| r<sub>as</sub> max | 2.5mm |
| r<sub>1as</sub> max | 2mm |
| Load center a | 41.5mm |
| Constant e | 0.35mm |
| Y<sub>2</sub> | 1.74mm |
| Y<sub>0</sub> | 0.96mm |
| Weight | 6.48kg |
