SKU: 32B-1-2.5MTR-DUN

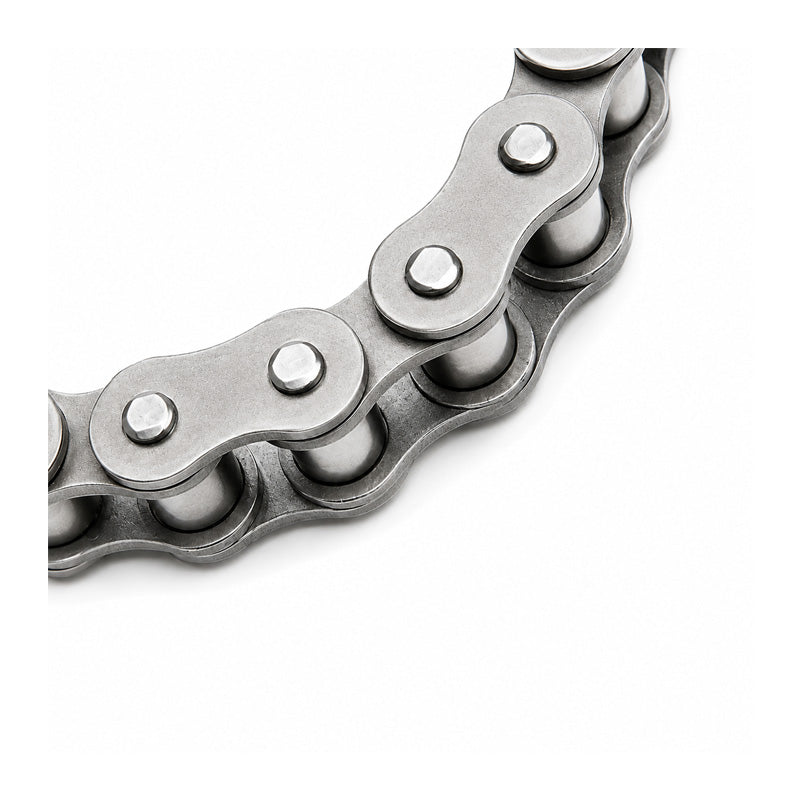

Dunlop 32B-1 BS Simplex Roller Chain 2 inch Pitch 2.5 Metres
Dunlop 32B-1 BS Simplex Roller Chain 2 inch Pitch 2.5 Metres
Regular price
CHF 348.04
ex VAT
Regular price
Sale price
CHF 348.04
ex VAT
In stock
Price Break
10+
CHF 309.76
19+
CHF 292.35
29+
CHF 288.87
39+
CHF 285.39
49+
CHF 281.91
74+
CHF 278.43
99+
CHF 261.03
199+
CHF 257.55
249+
CHF 254.07
499+
CHF 250.59
999+
CHF 243.63
Couldn't load pickup availability
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Dunlop - Good Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (P) | 50.8mm = 2 inch |
|---|---|
| Roller Diameter (D1 max) | 29.21mm |
| Width between inner plates (B1 min) | 30.99mm |
| Pin dia meter (D2 max) | 17.81mm |
| Pin length (L max) | 66mm |
| Pin length (Lc max) | 71mm |
| Inner plate depth (H2 max) | 42mm |
| Plate thickness (T max) | 7.0/6.0mm |
| Ultimate tensile strength (Q min) kN/LB | 250.0/56818 |
| Average tensile strength (Q0) kN | 277.5 |
| Weight per meter (q) kg/m | 10.25 |
