SKU: 32B-1-2.5MTR-MB

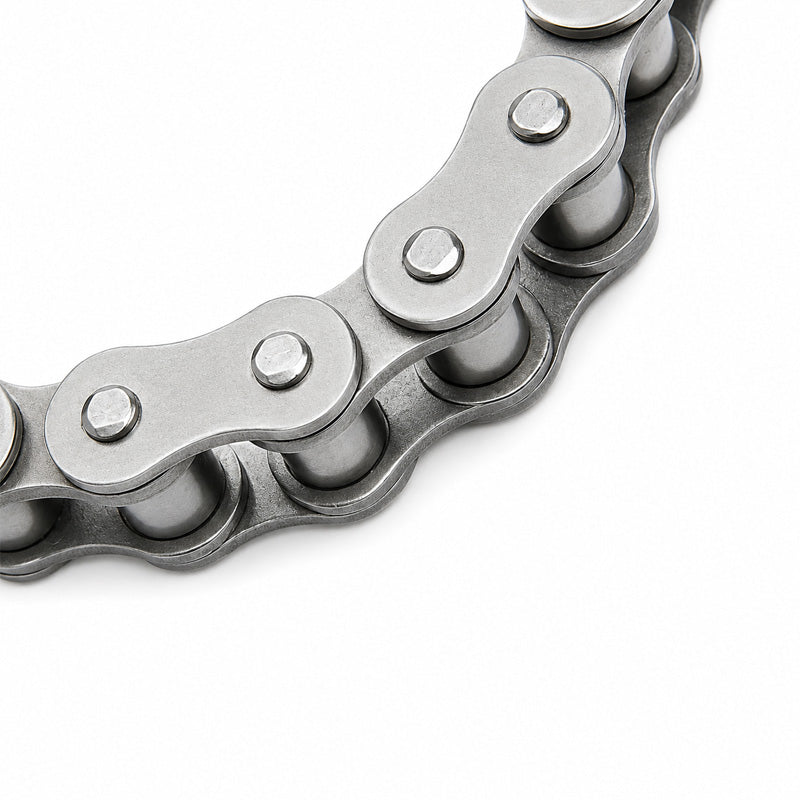

Branded 32B-1 BS Simplex Roller Chain 2 inch Pitch 2.5 Metres
Branded 32B-1 BS Simplex Roller Chain 2 inch Pitch 2.5 Metres
Regular price
CHF 347.00
ex VAT
Regular price
Sale price
CHF 347.00
ex VAT
Equivalent to: 32B1
In stock
Price Break
2+
CHF 276.14
5+
CHF 260.62
10+
CHF 257.52
29+
CHF 254.42
49+
CHF 251.32
75+
CHF 248.21
100+
CHF 232.70
200+
CHF 229.60
250+
CHF 226.49
500+
CHF 223.39
1000+
CHF 217.19
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
Equivalent: 32B1
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (P) | 50.8mm = 2 inch |
|---|---|
| Roller Diameter (D1 max) | 29.21mm |
| Width between inner plates (B1 min) | 30.99mm |
| Pin dia meter (D2 max) | 17.81mm |
| Pin length (L max) | 66mm |
| Pin length (Lc max) | 71mm |
| Inner plate depth (H2 max) | 42mm |
| Plate thickness (T max) | 7.0/6.0mm |
| Ultimate tensile strength (Q min) kN/LB | 250.0/56818 |
| Average tensile strength (Q0) kN | 277.5 |
| Weight per meter (q) kg/m | 10.25 |
