SKU: 32B-2-2.5MTR-MB

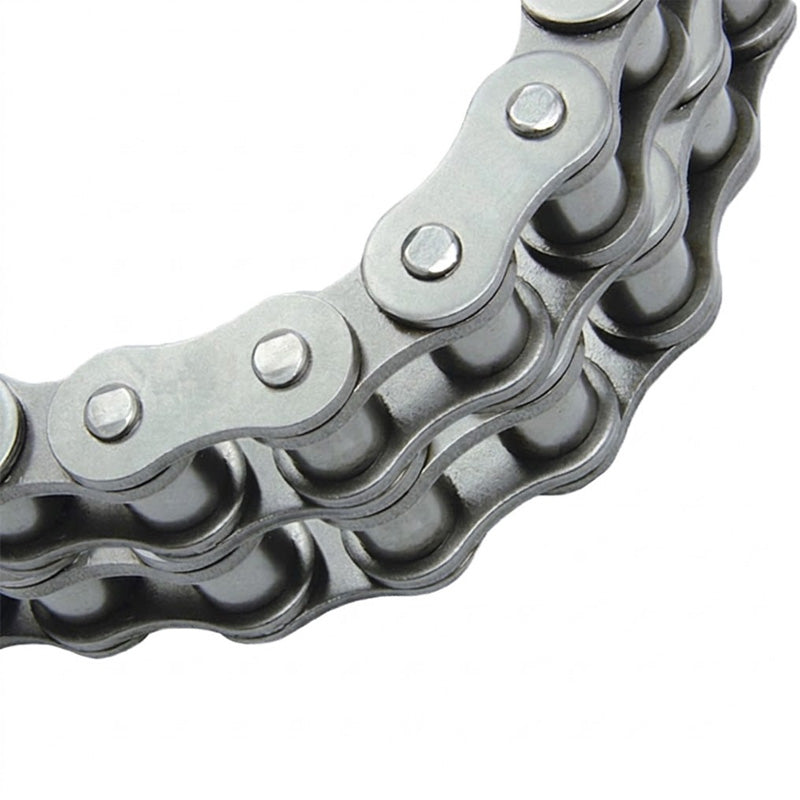

Branded 32B-2 BS Duplex Roller Chain 2 inch Pitch 2.5 Metres
Branded 32B-2 BS Duplex Roller Chain 2 inch Pitch 2.5 Metres
Regular price
CHF 337.00
ex VAT
Regular price
Sale price
CHF 337.00
ex VAT
In stock
Price Break
2+
CHF 267.67
5+
CHF 252.63
10+
CHF 249.62
29+
CHF 246.61
49+
CHF 243.61
75+
CHF 240.60
100+
CHF 225.56
200+
CHF 222.55
250+
CHF 219.55
500+
CHF 216.54
1000+
CHF 210.52
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (P) | 50.8mm = 2 inch |
|---|---|
| Roller Diameter (D1 max) | 29.21mm |
| Width between inner plates (B1 min) | 30.99mm |
| Pin dia meter (D2 max) | 17.81 |
| mmPin length (L max) | 124.6mm |
| Pin length (Lc max) | 129.6mm |
| Inner plate depth (H2 max) | 42mm |
| Plate thickness (T max) | 7.0/6.0mm |
| Ultimate tensile strength (Q min) kN/LB | 450.0/102273 |
| Average tensile strength (Q0) kN | 508.5 |
| Transverse pitch (Pt) mm | 58.55 |
| Weight per meter (q) kg/m | 21 |
