SKU: 32B-3-2.5MTR-MB

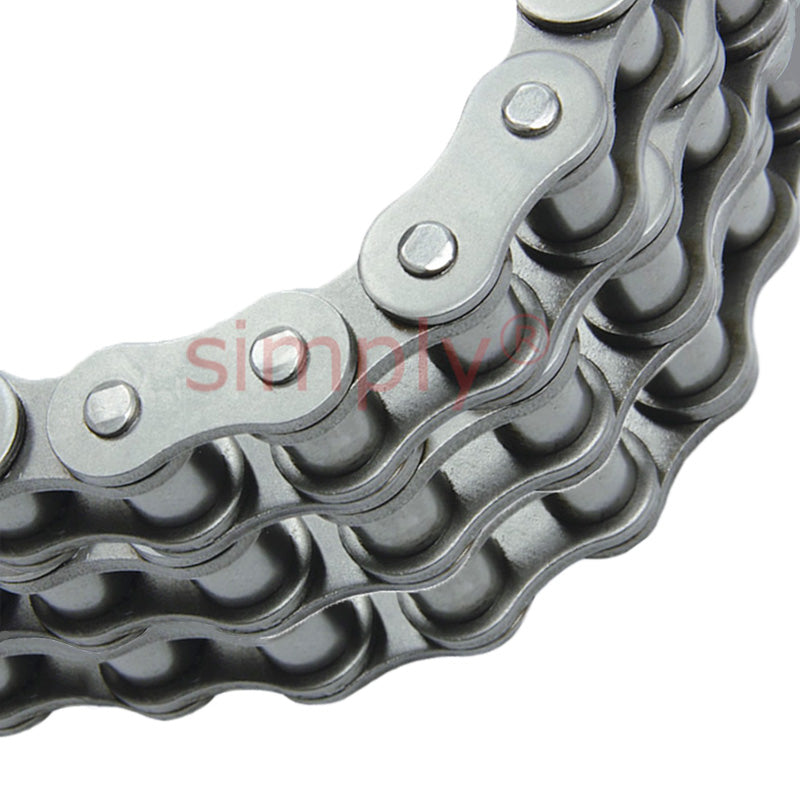

Branded 32B-3 BS Triplex Roller Chain 2 inch Pitch 2.5 Metres
Branded 32B-3 BS Triplex Roller Chain 2 inch Pitch 2.5 Metres
Regular price
CHF 571.00
ex VAT
Regular price
Sale price
CHF 571.00
ex VAT
In stock
Price Break
2+
CHF 454.48
5+
CHF 428.95
10+
CHF 423.84
29+
CHF 418.74
49+
CHF 413.63
75+
CHF 408.52
100+
CHF 382.99
200+
CHF 377.89
250+
CHF 372.78
500+
CHF 367.67
1000+
CHF 357.46
Share this product
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (P) | 50.8mm = 2 inch |
|---|---|
| Roller Diameter (D1 max) | 29.21mm |
| Width between inner plates (B1 min) | 30.99mm |
| Pin dia meter (D2 max) | 17.81mm |
| Pin length (L max) | 183.2mm |
| Pin length (Lc max) | 188.2mm |
| Inner plate depth (H2 max) | 42mm |
| Plate thickness (T max) | 7.0/6.0mm |
| Ultimate tensile strength (Q min) kN/LB | 670.0/152273 |
| Average tensile strength (Q0) kN | 770.5 |
| Transverse pitch (Pt) mm | 58.55 |
| Weight per meter (q) kg/m | 31.56 |
