SKU: 33020U-NTN

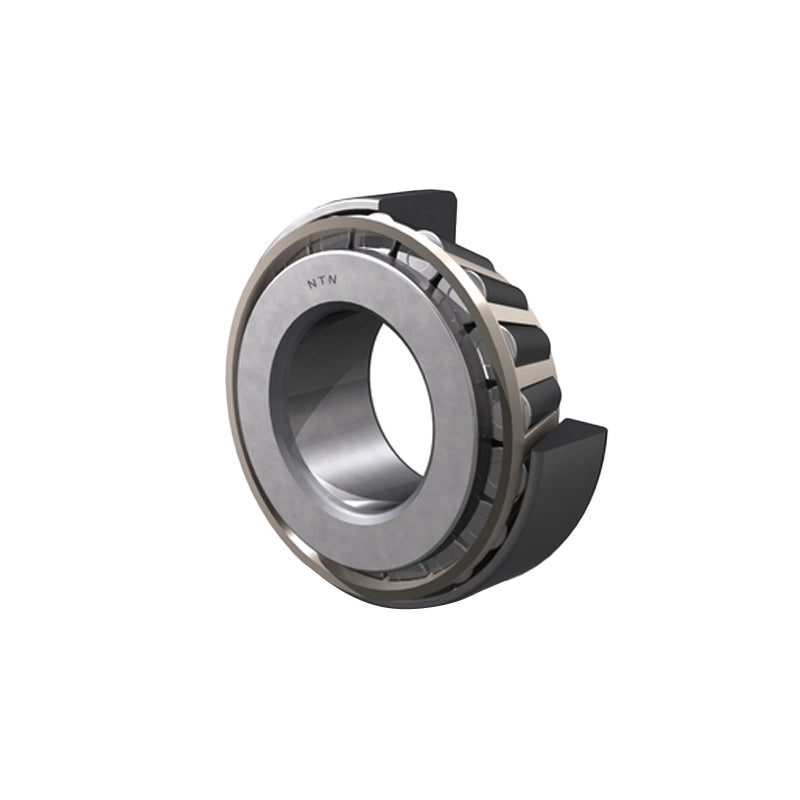

NTN 33020U Tapered Roller Bearing Cup and Cone Set 100x150x39mm
NTN 33020U Tapered Roller Bearing Cup and Cone Set 100x150x39mm
Regular price
CHF 131.66
ex VAT
Regular price
Sale price
CHF 131.66
ex VAT
In stock
Price Break
10+
CHF 117.18
19+
CHF 110.59
29+
CHF 109.28
39+
CHF 107.96
49+
CHF 106.64
74+
CHF 105.33
99+
CHF 98.75
199+
CHF 97.43
249+
CHF 96.11
499+
CHF 94.80
999+
CHF 92.16
Couldn't load pickup availability
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 39mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| T | 39mm |
| B | 39mm |
| C | 32.5mm |
| r<sub>s</sub> min | 2mm |
| r<sub>ls</sub> min | 1.5mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 248kN |
| Static load C<sub>or</sub> | 390kN |
| Fatigue Load limit C<sub>u</sub> | 44.5kN |
| Allowable Speed in grease | 2200rpm |
| Allowable Speed in oil | 3000rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 2CE |
| d<sub>a</sub> min | 110mm |
| d<sub>b</sub> max | 108.5mm |
| D<sub>a</sub> max | 141.5mm |
| D<sub>a</sub> min | 132.5mm |
| D<sub>b</sub> min | 144.5mm |
| S<sub>a</sub> min | 7mm |
| S<sub>b</sub> min | 6.5mm |
| r<sub>as</sub> max | 2mm |
| r<sub>1as</sub> max | 1.5mm |
| Load center a | 29.5mm |
| Constant e | 0.29mm |
| Y<sub>2</sub> | 2.09mm |
| Y<sub>0</sub> | 1.15mm |
| Weight | 2.4kg |
