SKU: 3304ATN9-SKF

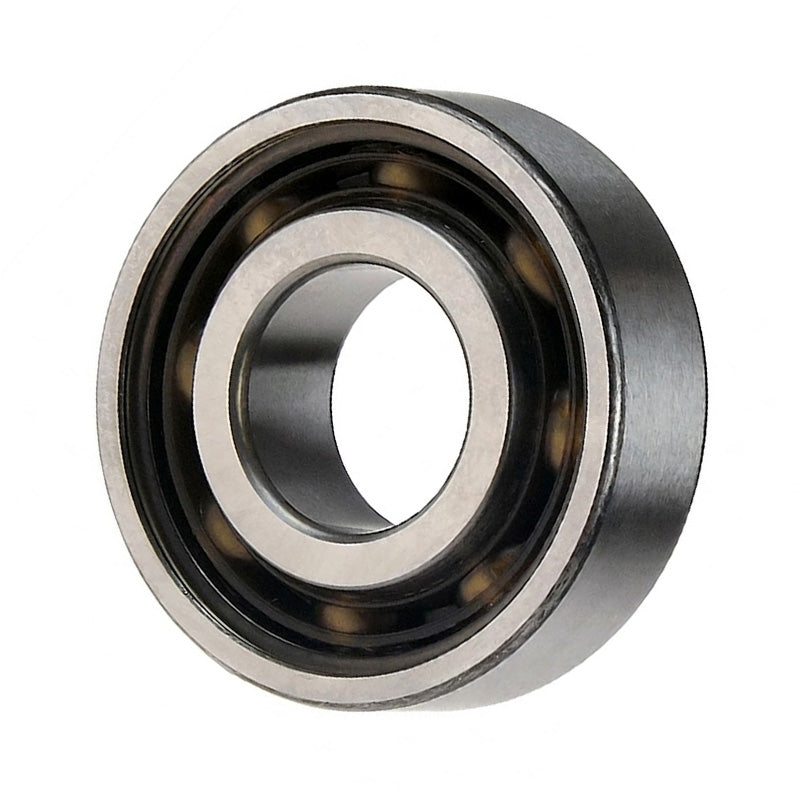

SKF 3304ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 20x52x22.2mm
SKF 3304ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 20x52x22.2mm
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
Equivalent to: 5304
In stock
Price Break
4+
CHF 43.86
8+
CHF 41.39
12+
CHF 40.90
16+
CHF 40.41
25+
CHF 39.91
50+
CHF 39.42
99+
CHF 36.96
199+
CHF 36.46
249+
CHF 35.97
499+
CHF 35.48
999+
CHF 34.49
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5304
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 22.2mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 22.2mm |
| Dynamic load Cr | 23.6 kN |
| Static load Cor | 14.6 kN |
| Fatigue load limit Pu | 0.62 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.22 kg |
| d1 | 29.9mm |
| D1 | 44mm |
| r1r2 min | 1.1mm |
| a | 30mm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1mm |
