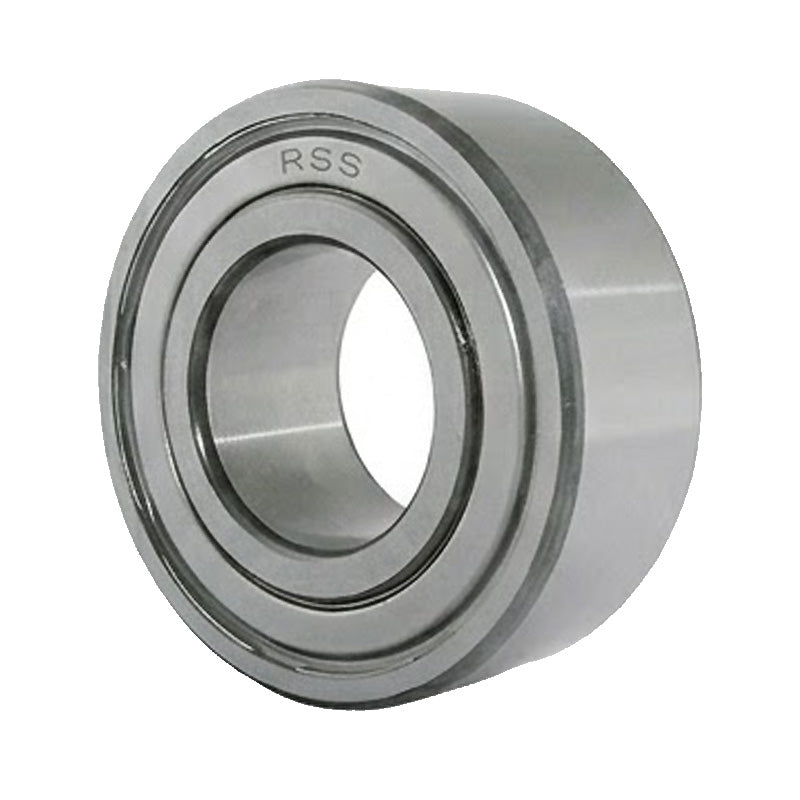

• SKF 3305A2RS1TN9MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x62x25.4mm
1 1

SKU: 3305A-2RS1TN9/MT33-SKF

SKF 3305A2RS1TN9MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x62x25.4mm

SKF 3305A2RS1TN9MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x62x25.4mm
CHF 79.00 ex VAT
CHF 79.00 ex VAT
Sale Sold out

Equivalent to: 5305

In stock

Price Break
4+ CHF 62.59
8+ CHF 59.07
12+ CHF 58.37
16+ CHF 57.66
25+ CHF 56.96
50+ CHF 56.26
99+ CHF 52.74
199+ CHF 52.04
249+ CHF 51.33
499+ CHF 50.63
999+ CHF 49.22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Equivalent: 5305
Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
25.4mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 25mm
D 62mm
B 25.4mm
Dynamic load Cr 32 kN
Static load Cor 20.4 kN
Fatigue load limit Pu 0.865 kN
Max speed 7500 rpm
Weight 0.35 kg
d1 35.7mm
D1 53.4mm
r1r2 min 1.1mm
a 36mm
da min 32mm
da max 35.5mm
Da max 55mm
ra max 1mm
