SKU: 3305ATN9-SKF

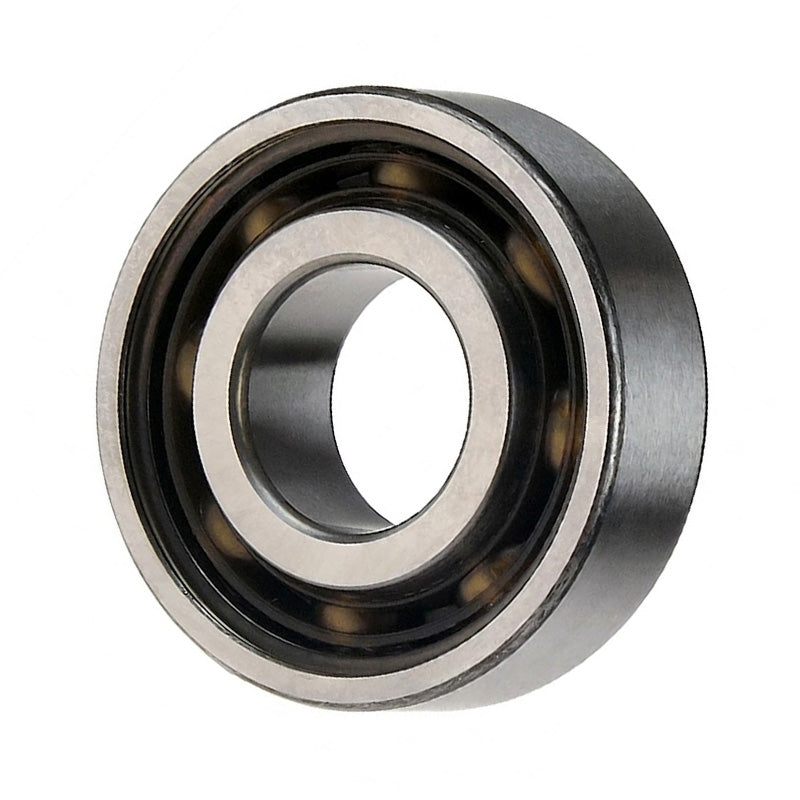

SKF 3305ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 25x62x25.4mm
SKF 3305ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 25x62x25.4mm
Regular price
CHF 66.00
ex VAT
Regular price
Sale price
CHF 66.00
ex VAT
Equivalent to: 5305
In stock
Price Break
4+
CHF 52.39
8+
CHF 49.45
12+
CHF 48.86
16+
CHF 48.27
25+
CHF 47.68
50+
CHF 47.10
99+
CHF 44.15
199+
CHF 43.56
249+
CHF 42.97
499+
CHF 42.39
999+
CHF 41.21
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5305
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 25.4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 25.4mm |
| Dynamic load Cr | 32 kN |
| Static load Cor | 20.4 kN |
| Fatigue load limit Pu | 0.865 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.35 kg |
| d1 | 35.7mm |
| D1 | 53.4mm |
| r1r2 min | 1.1mm |
| a | 36mm |
| da min | 32mm |
| Da max | 55mm |
| ra max | 1mm |
