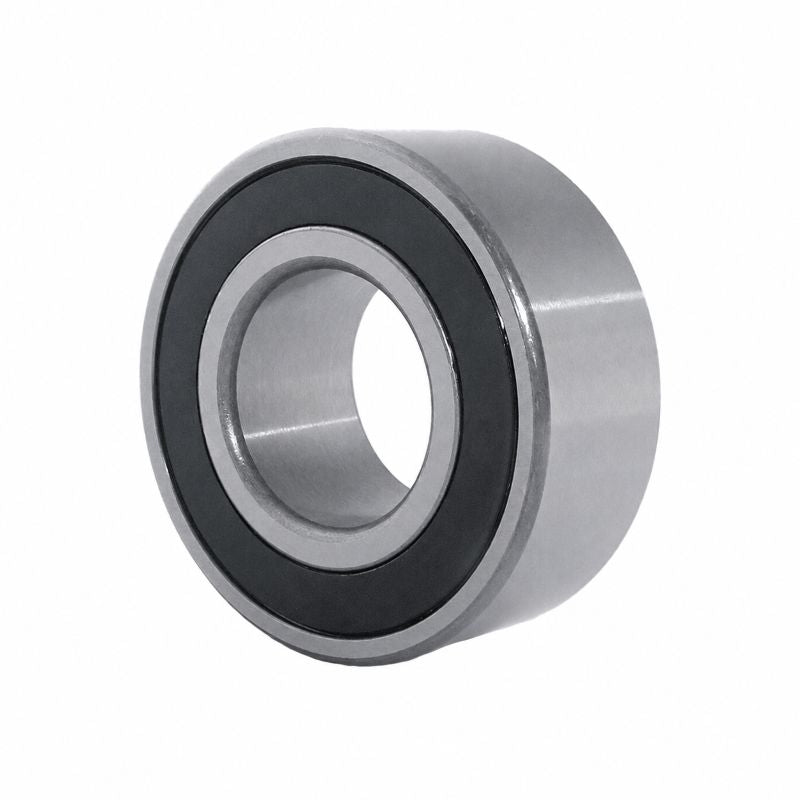

• SKF 3309A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x100x39.7mm
1 1

SKU: 3309A-2RS1/MT33-SKF

SKF 3309A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x100x39.7mm

SKF 3309A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x100x39.7mm
CHF 192.00 ex VAT
CHF 192.00 ex VAT
Sale Sold out

Equivalent to: 5309

In stock

Price Break
4+ CHF 152.28
8+ CHF 143.72
12+ CHF 142.01
16+ CHF 140.30
25+ CHF 138.59
50+ CHF 136.88
99+ CHF 128.32
199+ CHF 126.61
249+ CHF 124.90
499+ CHF 123.19
999+ CHF 119.77
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Equivalent: 5309
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
39.7mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 45mm
D 100mm
B 39.7mm
Dynamic load Cr 75 kN
Static load Cor 53 kN
Fatigue load limit Pu 2.24 kN
Max speed 4800 rpm
Weight 1.25 kg
d1 55.6mm
D1 90mm
r1r2 min 1.5mm
a 58mm
da min 54mm
da max 55.5mm
Da max 91mm
ra max 1.5mm
