SKU: 3309A-SKF

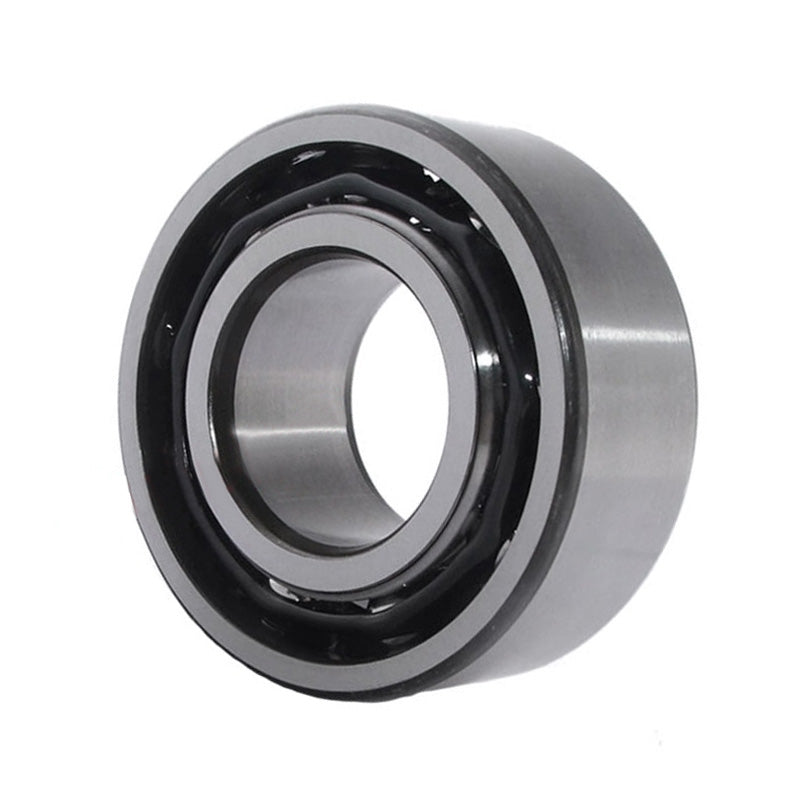

SKF 3309A Double Row Angular Contact Ball Bearing Steel Cage 45x100x39.7mm
SKF 3309A Double Row Angular Contact Ball Bearing Steel Cage 45x100x39.7mm
Regular price
CHF 177.00
ex VAT
Regular price
Sale price
CHF 177.00
ex VAT
Equivalent to: 5309
In stock
Price Break
4+
CHF 140.41
8+
CHF 132.52
12+
CHF 130.95
16+
CHF 129.37
25+
CHF 127.79
50+
CHF 126.21
99+
CHF 118.32
199+
CHF 116.75
249+
CHF 115.17
499+
CHF 113.59
999+
CHF 110.44
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5309
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 39.7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 39.7mm |
| Dynamic load Cr | 75 kN |
| Static load Cor | 53 kN |
| Fatigue load limit Pu | 2.24 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.4 kg |
| d1 | 55.6mm |
| D1 | 90mm |
| r1r2 min | 1.5mm |
| a | 58mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
