SKU: 3309ATN9/C3-SKF

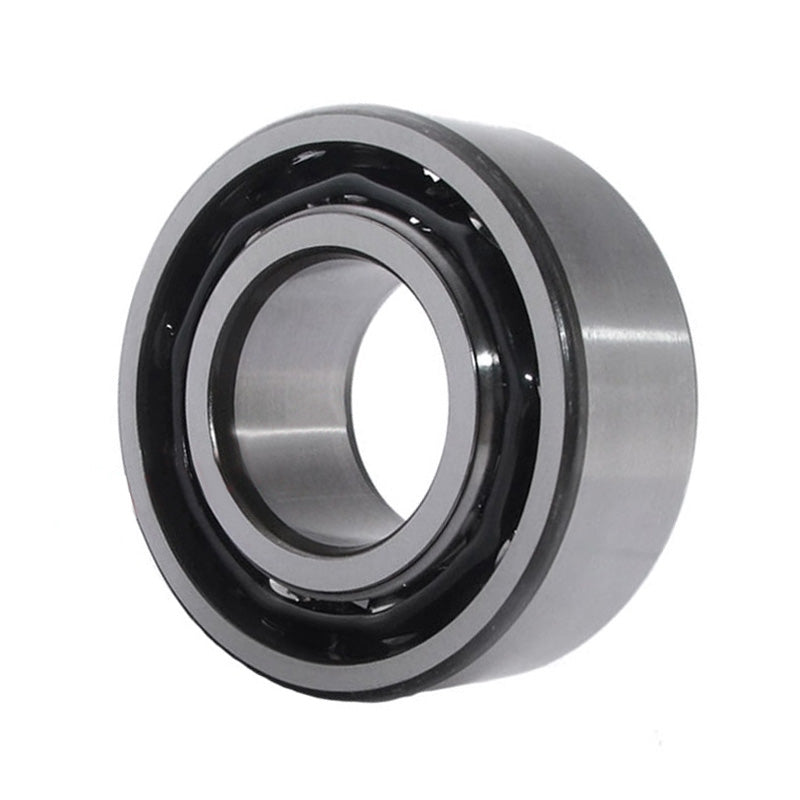

SKF 3309ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 45x100x39.7mm
SKF 3309ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 45x100x39.7mm
Regular price
CHF 130.70
ex VAT
Regular price
Sale price
CHF 130.70
ex VAT
Equivalent to: 5309
In stock
Price Break
10+
CHF 116.32
19+
CHF 109.79
29+
CHF 108.48
39+
CHF 107.17
49+
CHF 105.87
74+
CHF 104.56
99+
CHF 98.03
199+
CHF 96.72
249+
CHF 95.41
499+
CHF 94.10
999+
CHF 91.49
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5309
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 39.7mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 39.7mm |
| Dynamic load Cr | 75 kN |
| Static load Cor | 53 kN |
| Fatigue load limit Pu | 2.24 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.4 kg |
| d1 | 55.6mm |
| D1 | 90mm |
| r1r2 min | 1.5mm |
| a | 58mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
