SKU: 3309DMA-SKF

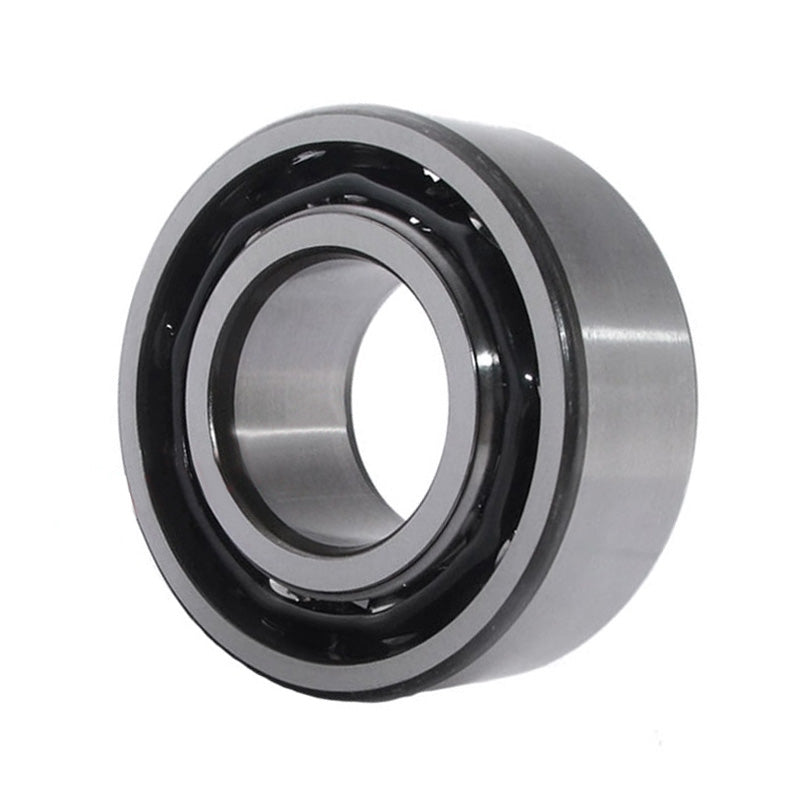

SKF 3309DMA Double Row Angular Contact Ball Bearing Steel Cage 45x100x39.7mm
SKF 3309DMA Double Row Angular Contact Ball Bearing Steel Cage 45x100x39.7mm
Regular price
CHF 336.85
ex VAT
Regular price
Sale price
CHF 336.85
ex VAT
Equivalent to: 5309
In stock
Price Break
10+
CHF 299.80
19+
CHF 282.95
29+
CHF 279.59
39+
CHF 276.22
49+
CHF 272.85
74+
CHF 269.48
99+
CHF 252.64
199+
CHF 249.27
249+
CHF 245.90
499+
CHF 242.53
999+
CHF 235.80
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5309
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 39.7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 39.7mm |
| Dynamic load Cr | 79.3 kN |
| Static load Cor | 69.5 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.6 kg |
| d1 | 70mm |
| D1 | 86.4mm |
| r1r2 min | 1.5mm |
| a | 93mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
