SKU: 3310A-2RS1/C3MT33-SKF

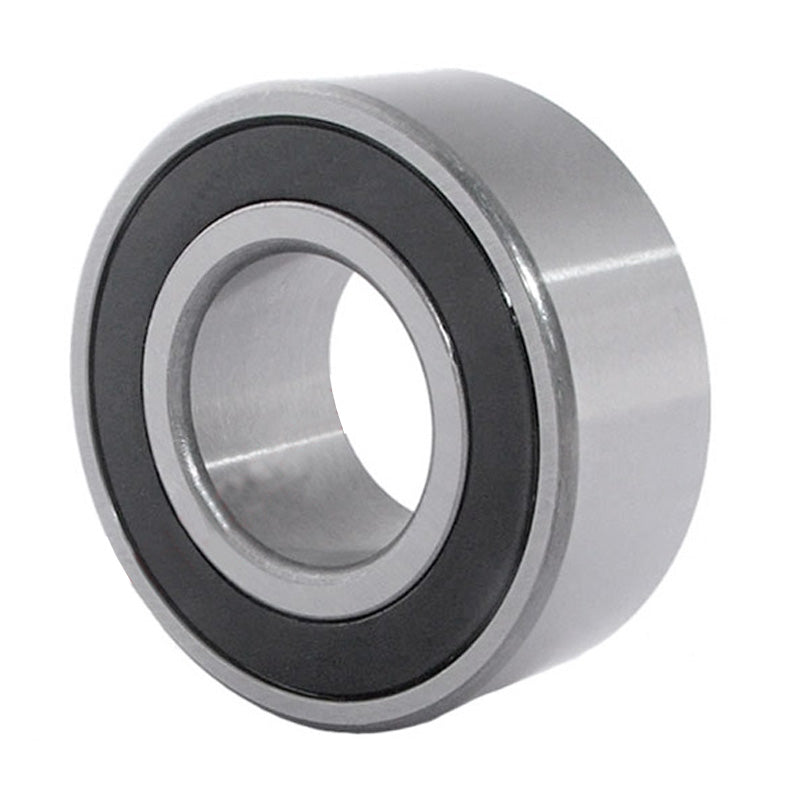

SKF 3310A2RS1C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 50x110x44.4mm

Name: SKF 3310A2RS1C3MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 50x110x44.4mm
Brand: SKF
SKU: 3310A-2RS1/C3MT33-SKF
Price: 232.00 CHF
Availability: InStock

CHF 232.00 ex VAT

Sale Sold out

Equivalent to: 5310

In stock

Price Break

4+ CHF 184.34

8+ CHF 173.99

12+ CHF 171.91

16+ CHF 169.84

25+ CHF 167.77

50+ CHF 165.70

99+ CHF 155.34

199+ CHF 153.27

249+ CHF 151.20

499+ CHF 149.13

999+ CHF 144.99

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Equivalent: 5310

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 110mm
Width:: 44.4mm
Seals / Shields:: None
Clearance:: C3

Technical

d	50mm
D	110mm
B	44.4mm
Dynamic load Cr	90 kN
Static load Cor	64 kN
Fatigue load limit Pu	2.75 kN
Max speed	4300 rpm
Weight	1.7 kg
d1	62mm
D1	99.5mm
r1r2 min	2mm
a	65mm
da min	61mm
da max	61.5mm
Da max	99.5mm
ra max	2mm
