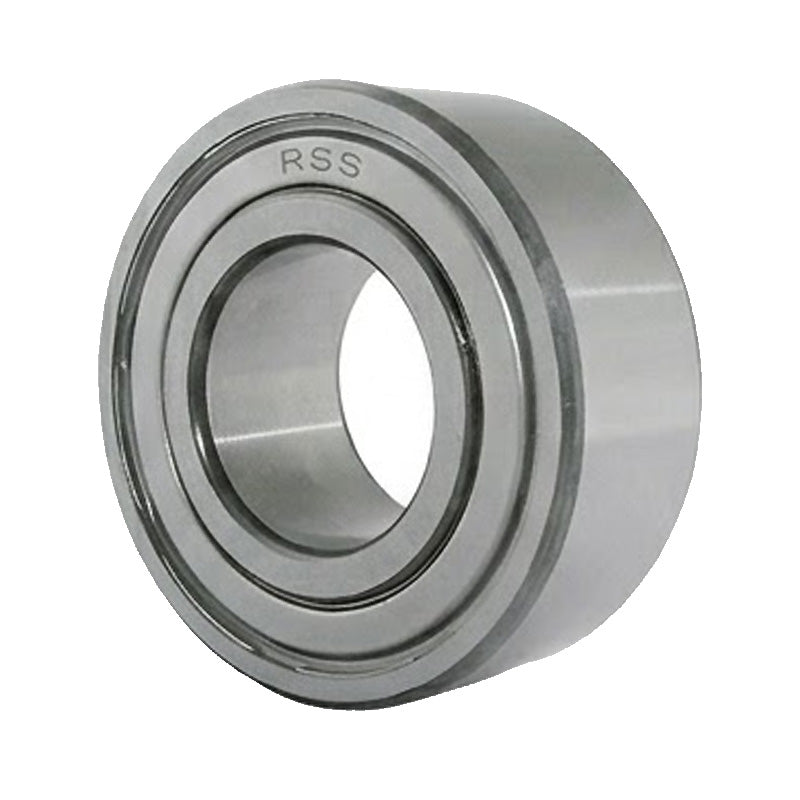

• SKF 3310A2ZC3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 50x110x44.4mm
1 1

SKU: 3310A-2Z/C3MT33-SKF

SKF 3310A2ZC3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 50x110x44.4mm

SKF 3310A2ZC3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 50x110x44.4mm
CHF 214.00 ex VAT
CHF 214.00 ex VAT
Sale Sold out

Equivalent to: 5310

In stock

Price Break
4+ CHF 169.85
8+ CHF 160.31
12+ CHF 158.40
16+ CHF 156.49
25+ CHF 154.58
50+ CHF 152.67
99+ CHF 143.13
199+ CHF 141.22
249+ CHF 139.31
499+ CHF 137.41
999+ CHF 133.59
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Equivalent: 5310
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
110mm
Width:
44.4mm
Seals / Shields:
None
Clearance:
C3
Technical
d 50mm
D 110mm
B 44.4mm
Dynamic load Cr 90 kN
Static load Cor 64 kN
Fatigue load limit Pu 2.75 kN
Max speed 6000 rpm
Weight 1.7 kg
d1 62mm
D1 99.5mm
r1r2 min 2mm
a 65mm
da min 61mm
da max 61.5mm
Da max 99.5mm
ra max 2mm
