SKU: 3310ATN9-SKF

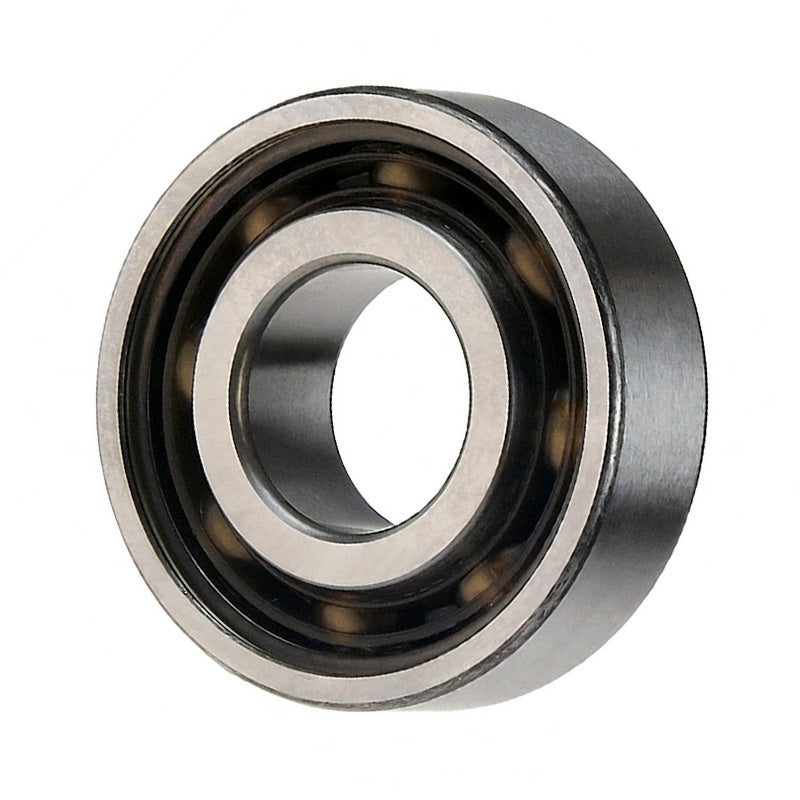

SKF 3310ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 50x110x44.4mm
SKF 3310ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 50x110x44.4mm
Regular price
CHF 164.00
ex VAT
Regular price
Sale price
CHF 164.00
ex VAT
Equivalent to: 5310
In stock
Price Break
4+
CHF 130.36
8+
CHF 123.04
12+
CHF 121.57
16+
CHF 120.11
25+
CHF 118.64
50+
CHF 117.18
99+
CHF 109.85
199+
CHF 108.39
249+
CHF 106.92
499+
CHF 105.46
999+
CHF 102.53
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5310
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 44.4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 44.4mm |
| Dynamic load Cr | 90 kN |
| Static load Cor | 64 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.95 kg |
| d1 | 62mm |
| D1 | 99.5mm |
| r1r2 min | 2mm |
| a | 65mm |
| da min | 61mm |
| Da max | 99.5mm |
| ra max | 2mm |
