SKU: 3310DNRCBM-SKF

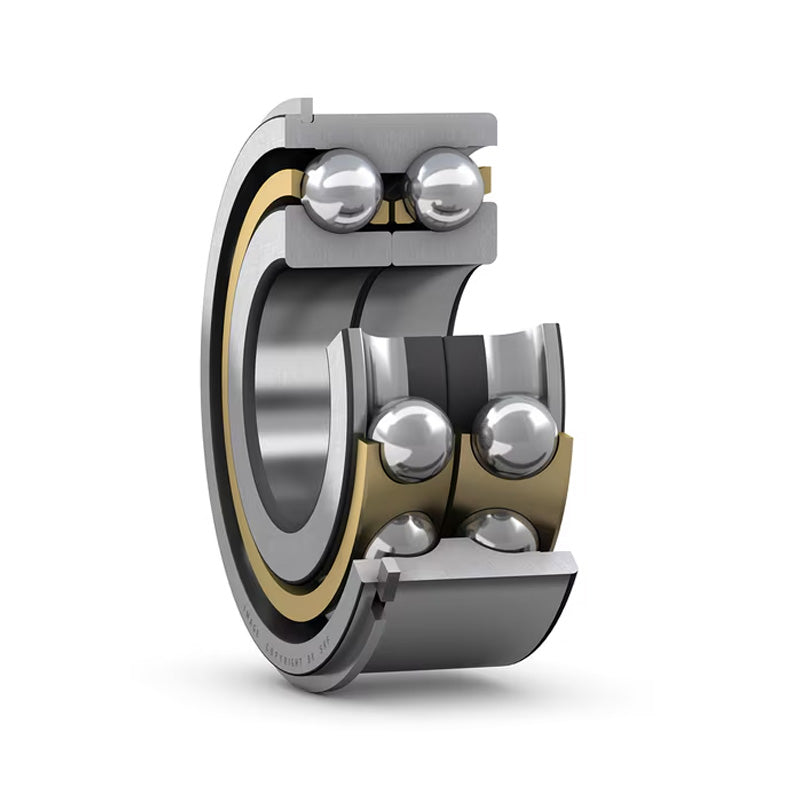

SKF 3310DNRCBM Double Row Angular Contact Ball Bearing Steel Cage 50x110x44.4mm
SKF 3310DNRCBM Double Row Angular Contact Ball Bearing Steel Cage 50x110x44.4mm
Regular price
CHF 416.46
ex VAT
Regular price
Sale price
CHF 416.46
ex VAT
Equivalent to: 5310
In stock
Price Break
10+
CHF 370.65
19+
CHF 349.83
29+
CHF 345.66
39+
CHF 341.50
49+
CHF 337.33
74+
CHF 333.17
99+
CHF 312.35
199+
CHF 308.18
249+
CHF 304.02
499+
CHF 299.85
999+
CHF 291.52
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5310
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 44.4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 44.4mm |
| Dynamic load Cr | 81.9 kN |
| Static load Cor | 69.5 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.95 kg |
| d1 | 74.6mm |
| D1 | 87mm |
| r1r2 min | 2mm |
| a | 88mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
