SKU: 3311DNRCBM-SKF

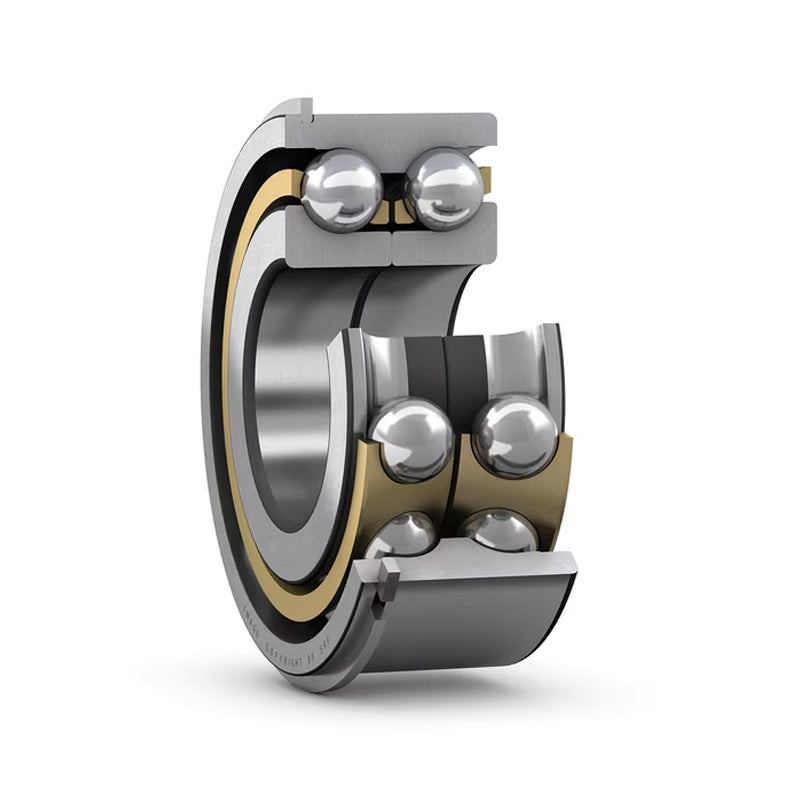

SKF 3311DNRCBM Double Row Angular Contact Ball Bearing Steel Cage 55x120x49.2mm
SKF 3311DNRCBM Double Row Angular Contact Ball Bearing Steel Cage 55x120x49.2mm
Regular price
CHF 554.00
ex VAT
Regular price
Sale price
CHF 554.00
ex VAT
Equivalent to: 5311
In stock
Price Break
4+
CHF 441.17
8+
CHF 416.38
12+
CHF 411.43
16+
CHF 406.47
25+
CHF 401.51
50+
CHF 396.55
99+
CHF 371.77
199+
CHF 366.81
249+
CHF 361.86
499+
CHF 356.90
999+
CHF 346.99
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5311
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 49.2mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 49.2mm |
| Dynamic load Cr | 95.6 kN |
| Static load Cor | 83 kN |
| Fatigue load limit Pu | 3.55 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.55 kg |
| d1 | 81.6mm |
| D1 | 106.5mm |
| r1r2 min | 2mm |
| a | 97mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
