SKU: 3480/3420B-TIM

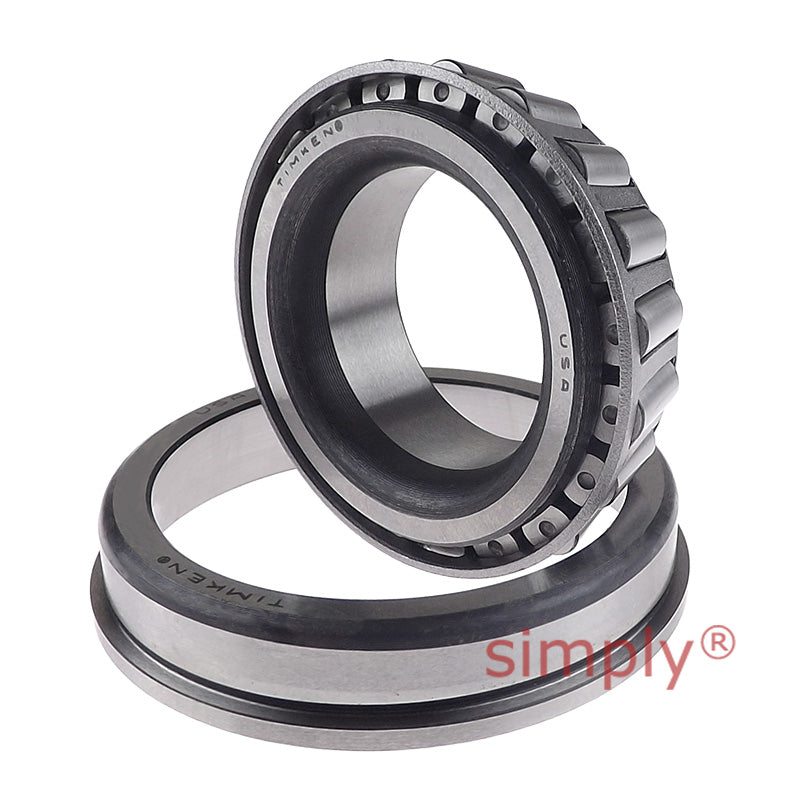

Timken 3480/3420B TSF Single-Row Taper Roller Bearing 1.378x3.125x1.1563 inch
Timken 3480/3420B TSF Single-Row Taper Roller Bearing 1.378x3.125x1.1563 inch
Regular price
CHF 240.00
ex VAT
Regular price
Sale price
CHF 240.00
ex VAT
In stock
Price Break
10+
CHF 190.80
20+
CHF 180.08
30+
CHF 177.93
40+
CHF 175.79
50+
CHF 173.65
75+
CHF 171.50
100+
CHF 160.78
200+
CHF 158.64
250+
CHF 156.50
500+
CHF 154.35
1000+
CHF 150.07
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 34.99mm = 1.378 inch
- Outside Diameter:
- 79.38mm = 3.125 (3-1/8) inch
- Width:
- 29.37mm = 1.156 (1-5/32) inch
Technical
Technical
| d | 35mm = 1.378 inch |
|---|---|
| D | 79.375mm = 3.125 inch |
| T1 | 10.32mm = 0.4063 inch |
| Dynamic (1) C1 | 96900N |
| Factors (5) e | 0.37 |
| Factors (5) Y | 1.64 |
| Dynamic (2) C90 | 25100N |
| Dynamic (2) Ca90 | 15700N |
| Factors (5) K | 1.6 |
| Static Co | 119000N |
| Bearing B | 29.771mm = 1.1721 inch |
| Bearing C | 23.812mm = 0.9375 inch |
| Bearing a(3) | -8.6mm = -0.34 inch |
| Bearing D1 | 84.049mm = 3.309 inch |
| Bearing C2 | 4.762mm = 0.1875 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 43.5mm = 1.71 inch |
| Shaft backing shoulder diameter db | 46mm = 1.81 inch |
| Housing backing shoulder diameter Da | 76mm = 2.99 inch |
| G1 | 29.9 |
| G2 | 11.2 |
| Cg | 0.0781 |
