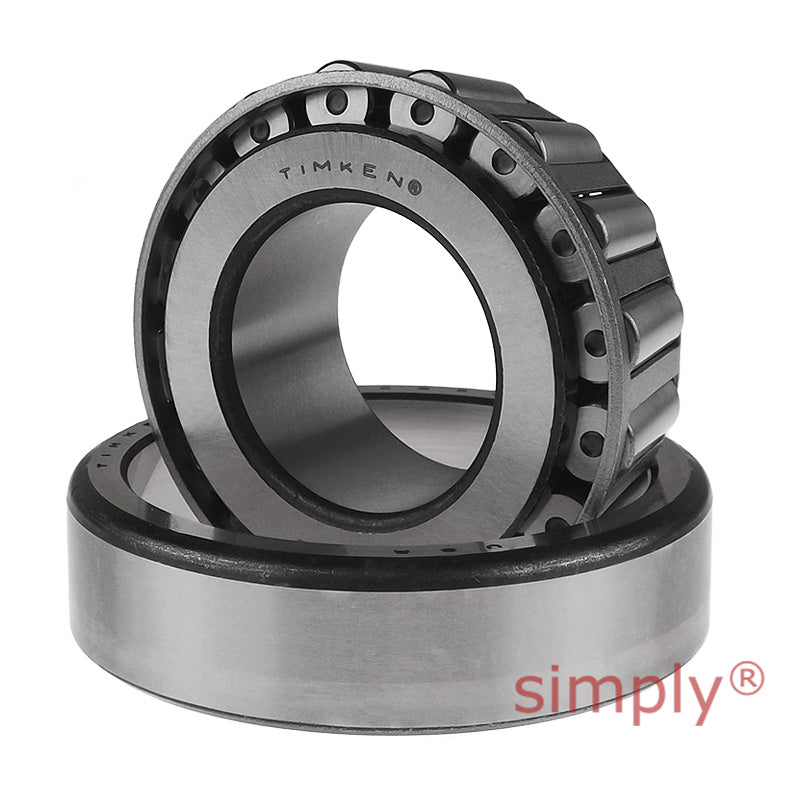

Timken 3480/3422 TS Single-Row Taper Roller Bearing 1.378x3.1562x1.1563 inch
Timken 3480/3422 TS Single-Row Taper Roller Bearing 1.378x3.1562x1.1563 inch
Regular price
CHF 375.00
ex VAT
Regular price
Sale price
CHF 375.00
ex VAT
In stock
Price Break
10+
CHF 298.22
20+
CHF 281.47
30+
CHF 278.12
40+
CHF 274.77
50+
CHF 271.42
75+
CHF 268.07
100+
CHF 251.31
200+
CHF 247.96
250+
CHF 244.61
500+
CHF 241.26
1000+
CHF 234.56
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 34.99mm = 1.378 inch
- Outside Diameter:
- 80.17mm = 3.156 (3-5/32) inch
- Width:
- 29.37mm = 1.156 (1-5/32) inch
Technical
Technical
| d | 35mm = 1.378 inch |
|---|---|
| D | 80.167mm = 3.1562 inch |
| T | 29.37mm = 1.1563 inch |
| Dynamic (1) C1 | 96900N |
| Factors (5) e | 0.37 |
| Factors (5) Y | 1.64 |
| Dynamic (2) C90 | 25100N |
| Dynamic (2) Ca90 | 15700N |
| Factors (5) K | 1.6 |
| Static C0 | 119000N |
| Bearing B | 29.771mm = 1.1721 inch |
| Bearing C | 23.812mm = 0.9375 inch |
| Bearing a(3) | -8.6mm = -0.34 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 43.5mm = 1.71 inch |
| Shaft backing shoulder diameter db | 46mm = 1.81 inch |
| Housing backing shoulder diameter r(4) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Da | 74mm = 2.91 inch |
| Housing backing shoulder diameter Db | 68mm = 2.68 inch |
| Cage Aa | 1.4mm = 0.06 inch |
| Cage Ab | 0.9mm = 0.04 inch |
| G1 | 29.9 |
| G2 | 11.2 |
| Cg | 0.0781 |
