SKU: 35-1-BB-NO30-RENOLD
Renold Blue Box 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
Renold Blue Box 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
2+
CHF 7.40
5+
CHF 6.98
10+
CHF 6.90
29+
CHF 6.81
49+
CHF 6.73
75+
CHF 6.65
100+
CHF 6.23
200+
CHF 6.15
250+
CHF 6.07
500+
CHF 5.98
1000+
CHF 5.82
Description
Description

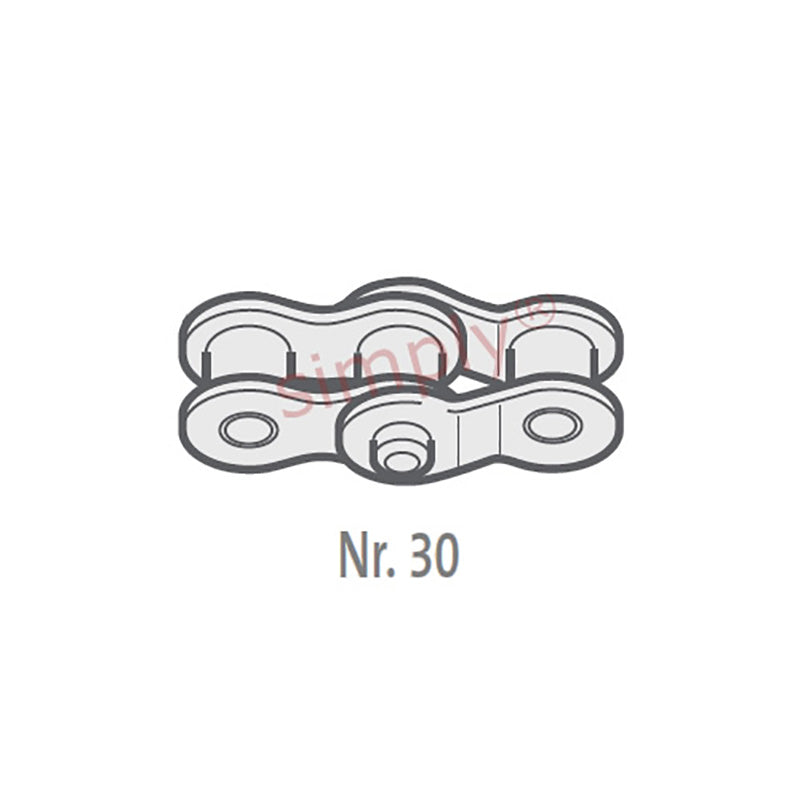

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.97mm |
| Pin Length max (H2) | 16.4mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 13900 N |
| Weight | 0.008kg/m |
