SKU: 35-2-NO26-MB

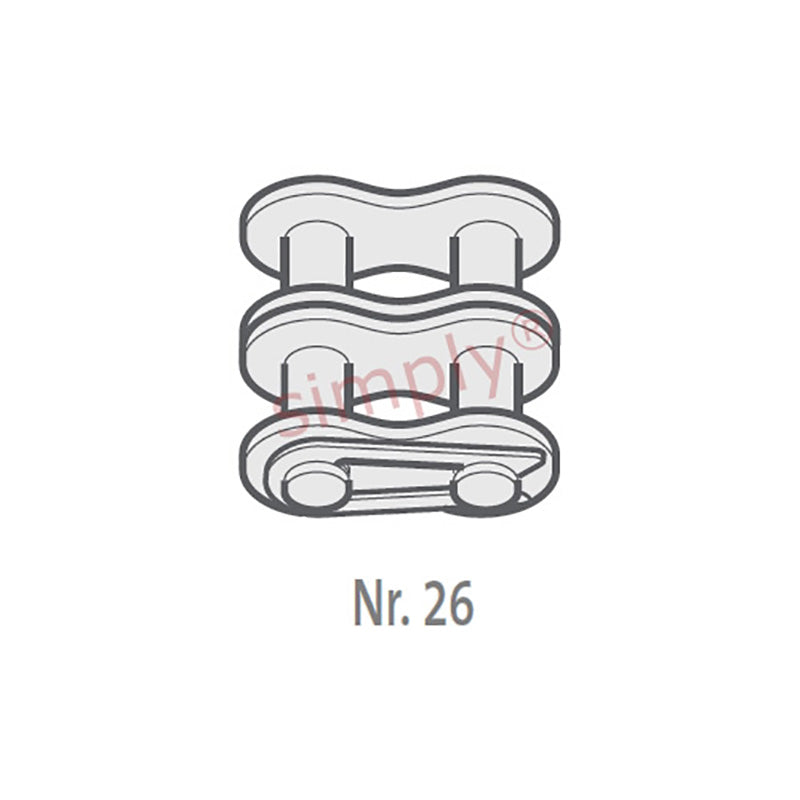

Branded 35-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Branded 35-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
Equivalent to: 35-2-CL
In stock
Price Break
2+
CHF 3.45
5+
CHF 3.25
10+
CHF 3.21
29+
CHF 3.18
49+
CHF 3.14
75+
CHF 3.10
100+
CHF 2.90
200+
CHF 2.87
250+
CHF 2.83
500+
CHF 2.79
1000+
CHF 2.71
Description
Description
Branded CL / No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 35-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.68mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.6mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.29mm |
| Pin Diameter max (G) | 3.59mm |
| Pin Length max (H2) | 22.2mm |
| Connecting Link Extension max (J) | 1.7mm |
| Transverse Pitch nom (K) | 10.13mm |
| ISO606 Tensile Strength min | 15800 N |
| Weight | 0.62kg/m |
