SKU: 35-3-SYN-NO30-RENOLD
Renold Synergy 35-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/8 inch Pitch
Renold Synergy 35-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
CHF 65.00
ex VAT
Regular price
Sale price
CHF 65.00
ex VAT
In stock
Price Break
2+
CHF 51.07
5+
CHF 48.20
10+
CHF 47.63
29+
CHF 47.05
49+
CHF 46.48
75+
CHF 45.90
100+
CHF 43.04
200+
CHF 42.46
250+
CHF 41.89
500+
CHF 41.31
1000+
CHF 40.17
Description
Description

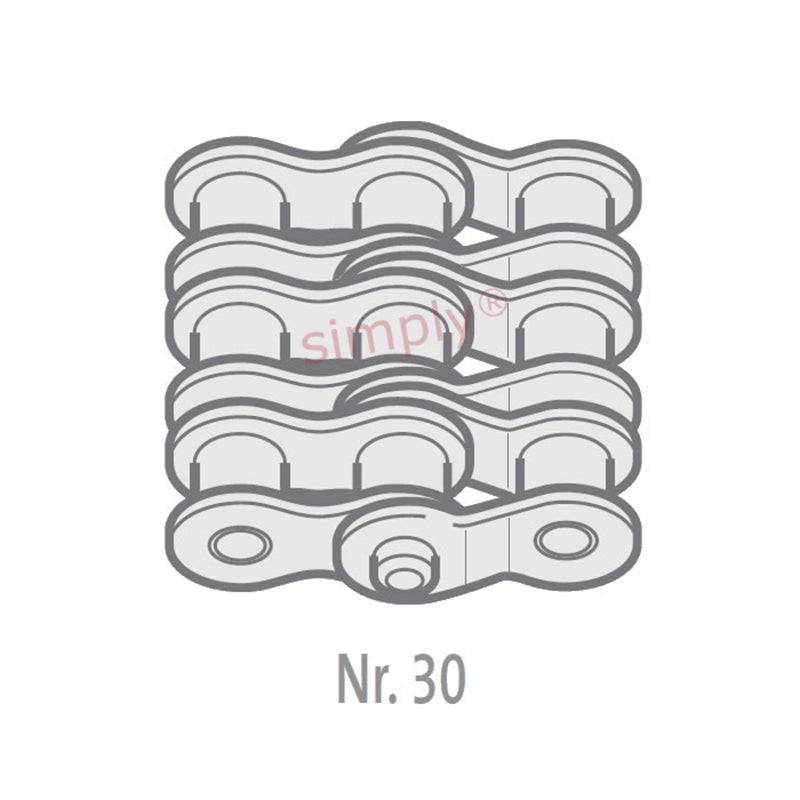

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.68mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.6mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.29mm |
| Pin Diameter max (G) | 3.59mm |
| Pin Length max (H2) | 32.2mm |
| Connecting Link Extension max (J) | 1.7mm |
| Transverse Pitch nom (K) | 10.13mm |
| ISO606 Tensile Strength min | 23700 N |
| Weight | 0.87kg/m |
