SKU: 3659/3620.B-TIM

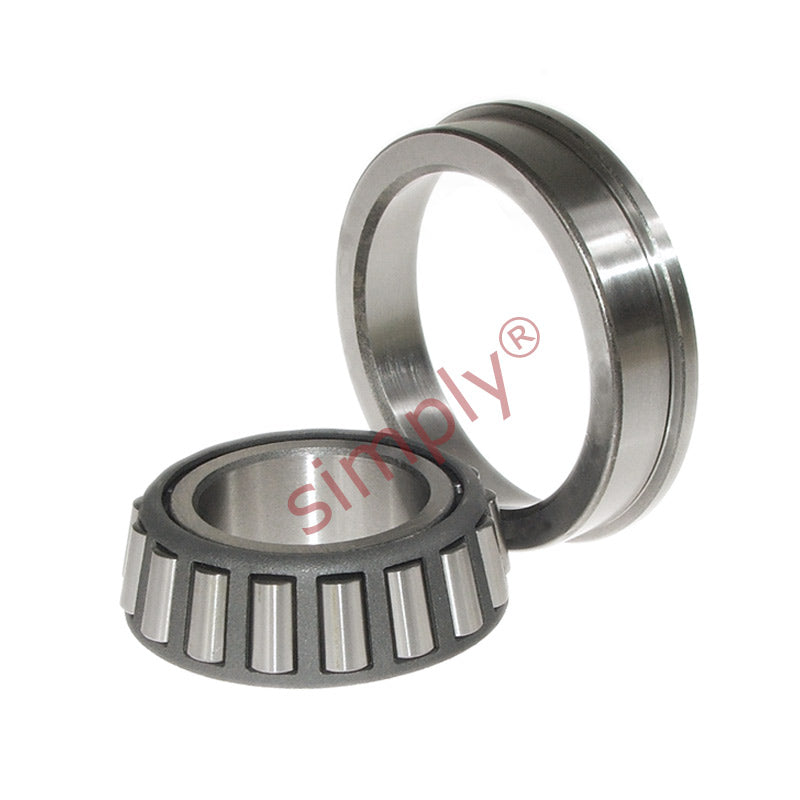

Timken 3659/3620B Imperial Taper Roller Bearing Cup and Cone Set 0.9375x2.4375x1.125 inch
Timken 3659/3620B Imperial Taper Roller Bearing Cup and Cone Set 0.9375x2.4375x1.125 inch
Regular price
CHF 228.00
ex VAT
Regular price
Sale price
CHF 228.00
ex VAT
In stock
Price Break
10+
CHF 181.19
20+
CHF 171.01
30+
CHF 168.98
40+
CHF 166.94
50+
CHF 164.91
75+
CHF 162.87
100+
CHF 152.69
200+
CHF 150.66
250+
CHF 148.62
500+
CHF 146.58
1000+
CHF 142.51
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Width:
- 28.58mm = 1.125 (1-1/8) inch
Technical
Technical
| Cup | 3620B |
|---|---|
| Cone | 3659 |
| Inside diameter | 0.9375 inch (23.81mm) |
| Outside diameter | 2.4375 inch (61.91mm) |
| Cone width | 1.1975 inch (30.4165mm) |
| Cup width | 0.9375 inch (23.8125mm) |
| Bearing width | 1.125 inch (28.58mm) |
