SKU: 378DE/372A-TIM

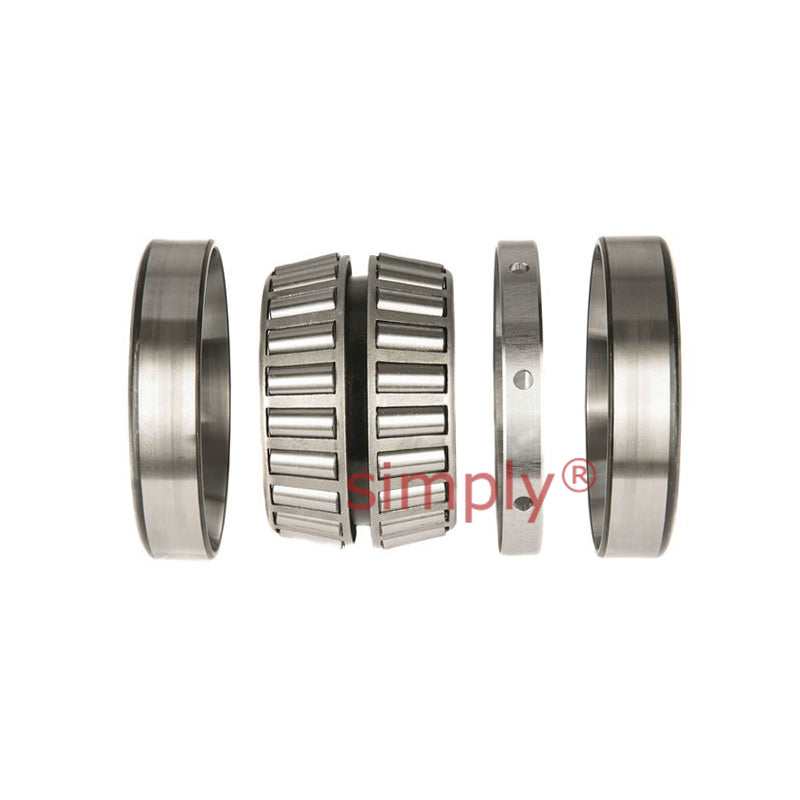

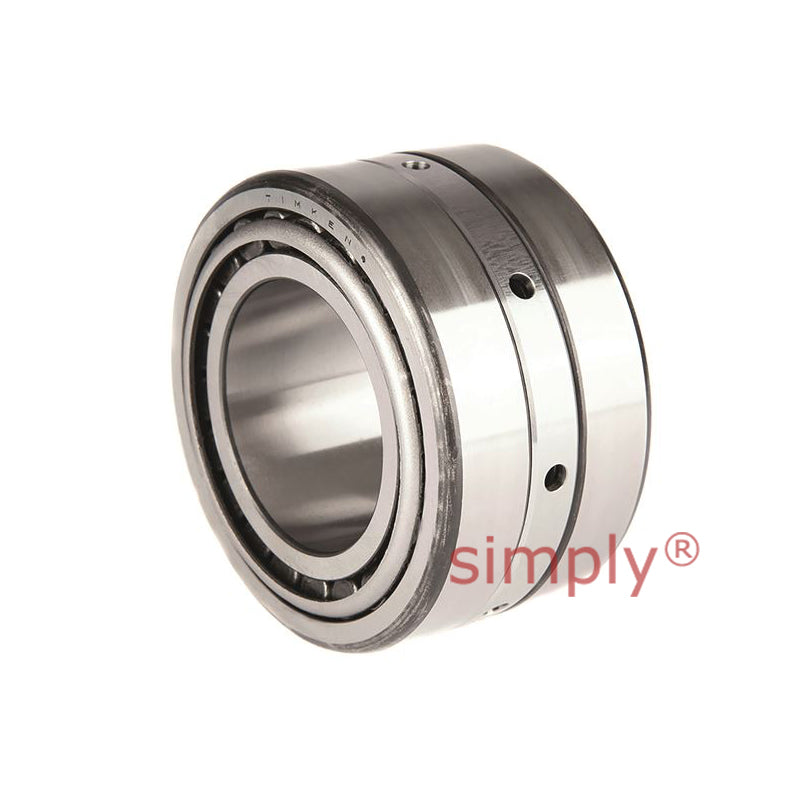

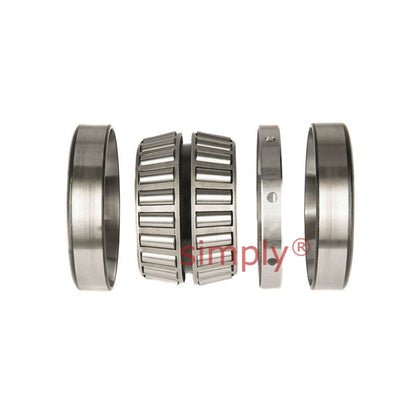

Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
Regular price
CHF 416.00
ex VAT
Regular price
Sale price
CHF 416.00
ex VAT
In stock
Price Break
10+
CHF 330.69
20+
CHF 312.11
30+
CHF 308.40
40+
CHF 304.68
50+
CHF 300.96
75+
CHF 297.25
100+
CHF 278.67
200+
CHF 274.96
250+
CHF 271.24
500+
CHF 267.52
1000+
CHF 260.09
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 96.84mm = 3.813 (3-13/16) inch
- Width:
- 53.19mm = 2.094 (2-3/32) inch

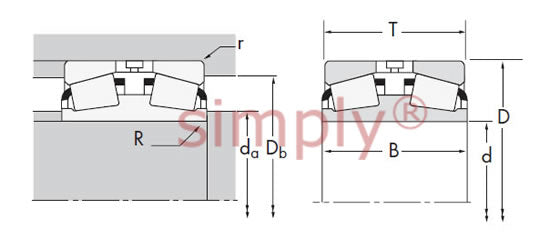

Technical
Technical
| d | 49.212mm = 1.9375 inch |
|---|---|
| D | 96.838mm = 3.8125 inch |
| T | 53.188mm = 2.094 inch |
| C | 53.188mm = 2.094 inch |
| Dynamic (1) C1 | 142000N |
| Factors (5) e | 0.34 |
| Factors (5) Y1 | 1.99 |
| Factors (5) Y2 | 2.97 |
| Dynamic (2) C90 | 21100N |
| Dynamic (2) Ca90 | 12200N |
| Dynamic (2) C90(2) | 36800N |
| Factors (5) K | 1.73 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 56mm = 2.2 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 86mm = 3.39 inch |
| G1 | 37.6 |
| G2 | 15.4 |
| Cg | 0.0816 |
