SKU: 3800.B.2RSR.TVH

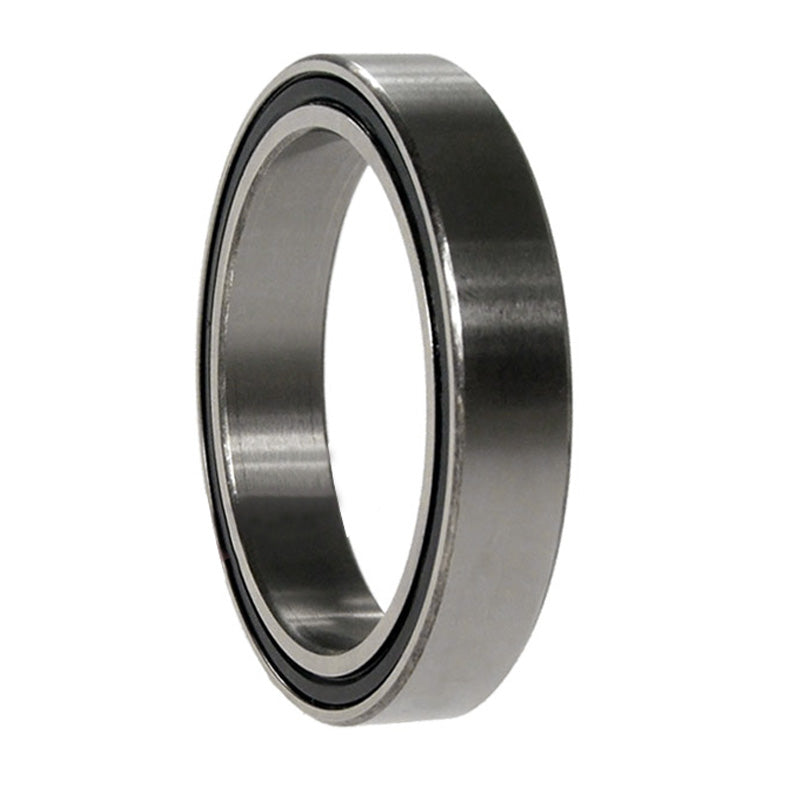

INA 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm
INA 3800B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 10x19x7mm
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
Equivalent to: 5800B2RSRTVH
Low stock
Price Break
10+
CHF 30.97
19+
CHF 29.23
29+
CHF 28.88
39+
CHF 28.54
49+
CHF 28.19
74+
CHF 27.84
99+
CHF 26.10
199+
CHF 25.75
249+
CHF 25.40
499+
CHF 25.06
999+
CHF 24.36
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5800B2RSRTVH
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 7mm |
| a | 9mm |
| d1 max | 16.7mm |
| Da max | 17mm |
| da min | 12mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle ? | 25° |
| Weight | 0.008 kg |
| Dynamic load Cr | 2080 N |
| Static load Cor | 1370 N |
| Fatigue limit load Cur | 70 N |
| Reference speed | 18000 rpm |
| Limiting Speed | 21100 rpm |
