SKU: 3805.B.2RSR.TVH.EU

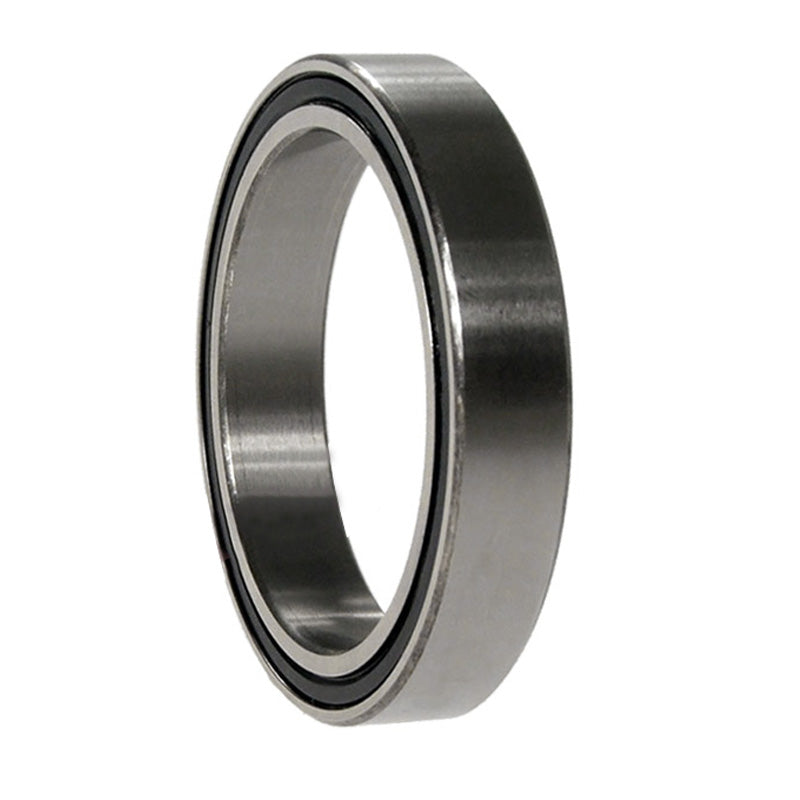

Budget 3805B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 25x37x10mm
Budget 3805B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 25x37x10mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
Equivalent to: 5805B2RSRTVH
Low stock
Price Break
10+
CHF 8.81
19+
CHF 8.32
29+
CHF 8.22
39+
CHF 8.12
49+
CHF 8.02
74+
CHF 7.92
99+
CHF 7.43
199+
CHF 7.33
249+
CHF 7.23
499+
CHF 7.13
999+
CHF 6.93
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5805B2RSRTVH
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 37mm |
| B | 10mm |
| a | 15.9mm |
| d1 max | 28.3mm |
| Da max | 35mm |
| da min | 27mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.025 kg |
| Dynamic load Cr | 6000 N |
| Static load Cor | 5600 N |
| Fatigue limit load Cur | 280 N |
| Reference speed | 8500 rpm |
| Limiting Speed | 10300 rpm |
