SKU: 3808.B.2RSR.TVH.EU

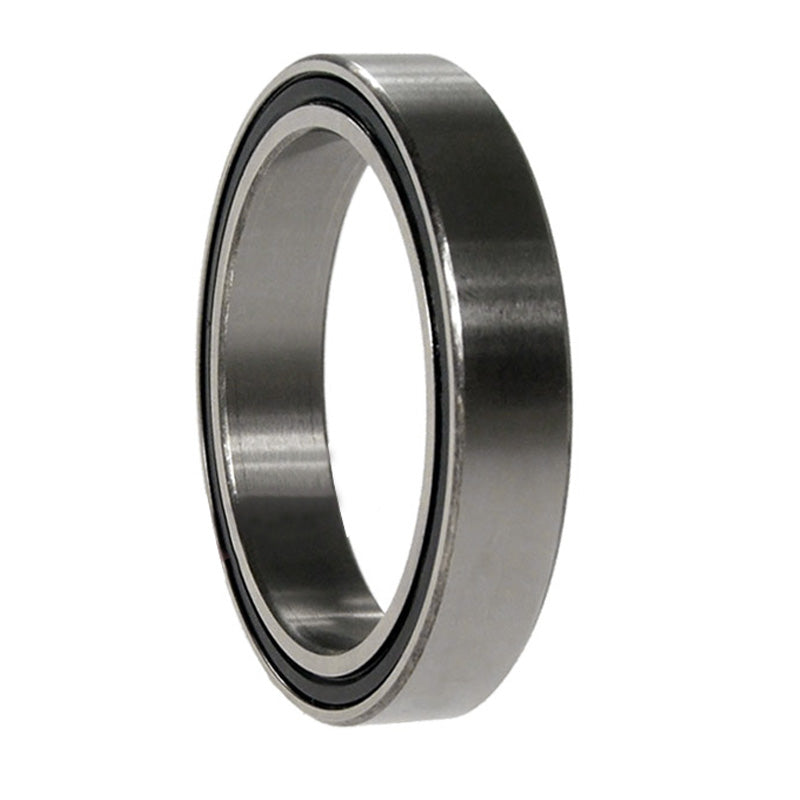

Budget 3808B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 40x52x10mm
Budget 3808B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 40x52x10mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
Equivalent to: 5808B2RSRTVH
Low stock
Price Break
10+
CHF 23.50
19+
CHF 22.18
29+
CHF 21.91
39+
CHF 21.65
49+
CHF 21.38
74+
CHF 21.12
99+
CHF 19.80
199+
CHF 19.54
249+
CHF 19.27
499+
CHF 19.01
999+
CHF 18.48
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5808B2RSRTVH
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 52mm |
| B | 10mm |
| a | 22.4mm |
| d1 max | 43.4mm |
| Da max | 50mm |
| da min | 42mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle ? | 25° |
| Weight | 0.04 kg |
| Dynamic load Cr | 7000 N |
| Static load Cor | 7800 N |
| Fatigue limit load Cur | 425 N |
| Reference speed | 5300 rpm |
| Limiting Speed | 6400 rpm |
