SKU: 3810.B.2RSR.TVH.EU

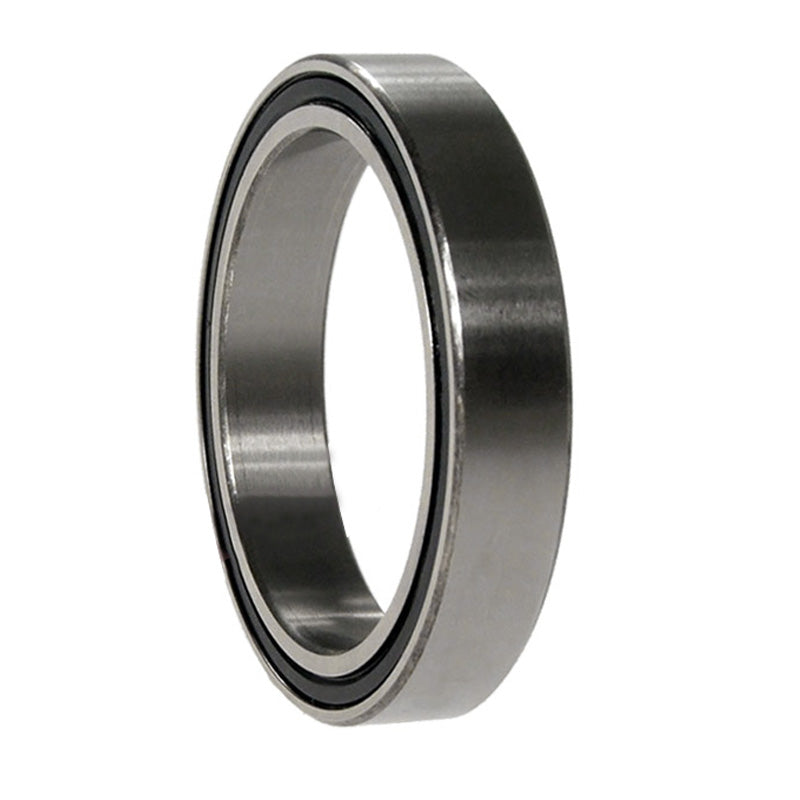

Budget 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm
Budget 3810B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 50x65x12mm
Regular price
CHF 36.00
ex VAT
Regular price
Sale price
CHF 36.00
ex VAT
Equivalent to: 5810B2RSRTVH
Low stock
Price Break
10+
CHF 28.36
19+
CHF 26.76
29+
CHF 26.45
39+
CHF 26.13
49+
CHF 25.81
74+
CHF 25.49
99+
CHF 23.90
199+
CHF 23.58
249+
CHF 23.26
499+
CHF 22.94
999+
CHF 22.30
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5810B2RSRTVH
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 65mm |
| B | 12mm |
| a | 27.1mm |
| d1 max | 55.1mm |
| Da max | 63mm |
| da min | 52mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle ? | 25° |
| Weight | 0.07 kg |
| Dynamic load Cr | 8700 N |
| Static load Cor | 10400 N |
| Fatigue limit load Cur | 580 N |
| Reference speed | 4500 rpm |
| Limiting Speed | 5400 rpm |
