SKU: 40-1-BB-NO30-RENOLD
Renold Blue Box 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
Renold Blue Box 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
CHF 13.00
ex VAT
Regular price
Sale price
CHF 13.00
ex VAT
In stock
Price Break
2+
CHF 9.93
5+
CHF 9.37
10+
CHF 9.26
29+
CHF 9.15
49+
CHF 9.04
75+
CHF 8.93
100+
CHF 8.37
200+
CHF 8.26
250+
CHF 8.15
500+
CHF 8.03
1000+
CHF 7.81
Description
Description

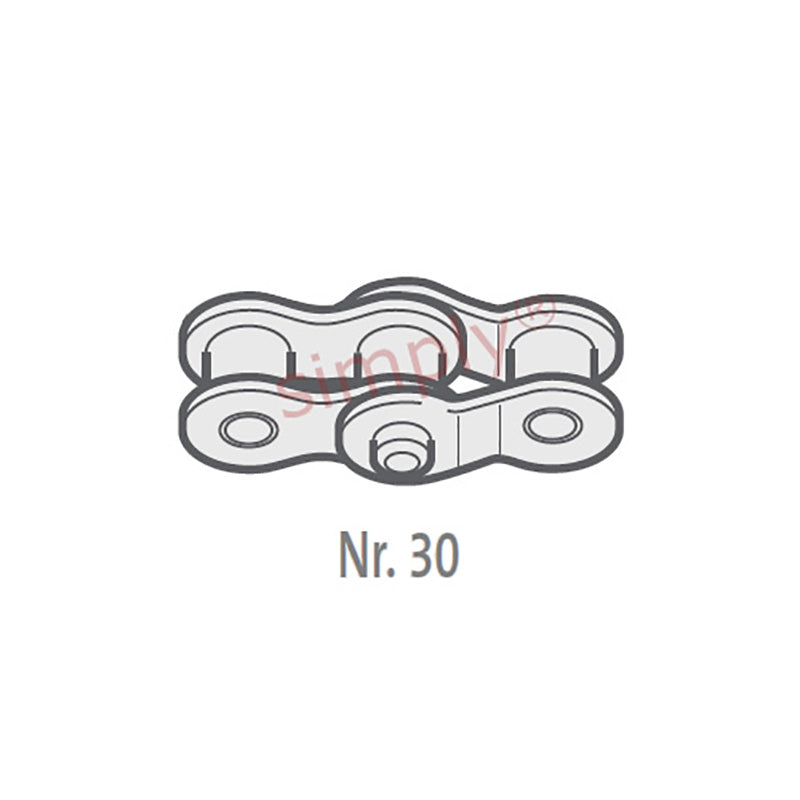

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 16.4mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 13900 N |
| Weight | 0.01kg/m |
