SKU: 40-2-SYN-NO30-RENOLD

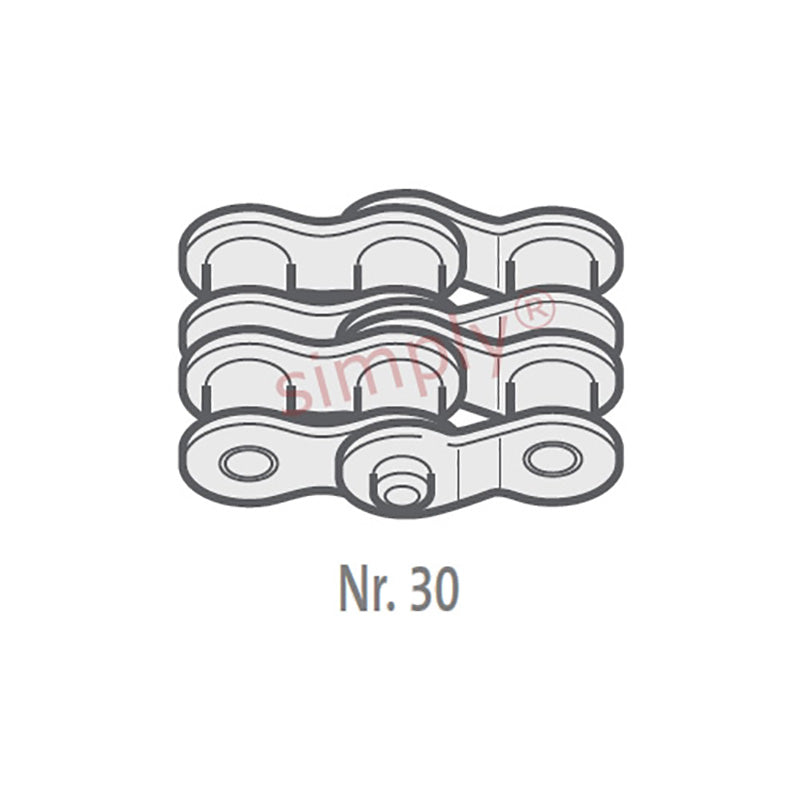

Renold Synergy 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
Renold Synergy 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
2+
CHF 39.39
5+
CHF 37.18
10+
CHF 36.74
29+
CHF 36.29
49+
CHF 35.85
75+
CHF 35.41
100+
CHF 33.20
200+
CHF 32.75
250+
CHF 32.31
500+
CHF 31.87
1000+
CHF 30.98
Description
Description
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.97mm |
| Pin Length max (H2) | 30.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 27800 N |
| Weight | 0.02kg/m |
