SKU: 4218.B.TV.MB

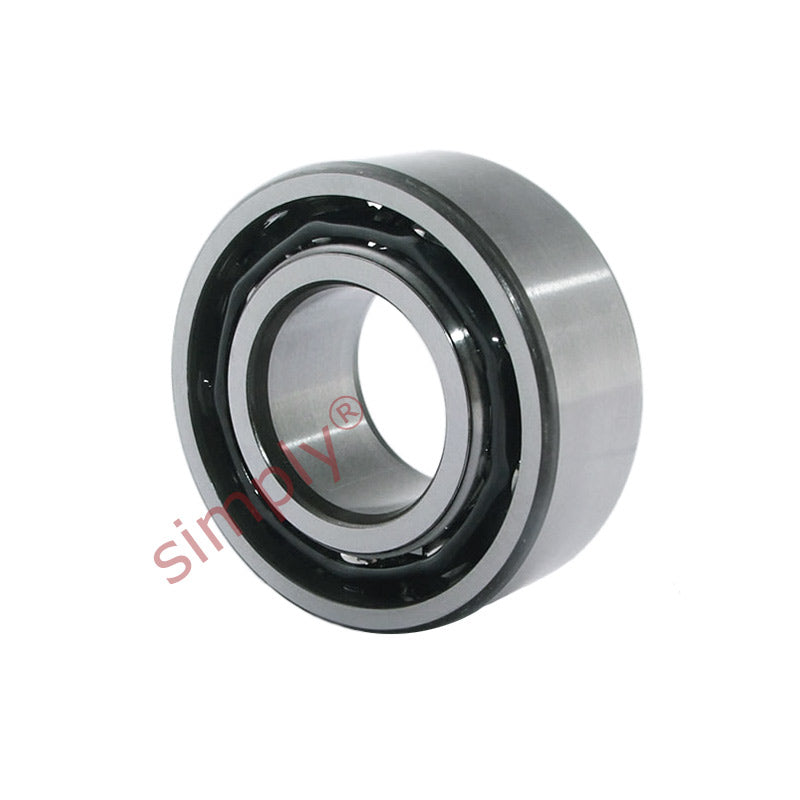

4218BTV Double Row Deep Groove Ball Bearing 90x160x40mm
4218BTV Double Row Deep Groove Ball Bearing 90x160x40mm
Regular price
CHF 497.02
ex VAT
Regular price
Sale price
CHF 497.02
ex VAT
In stock
Price Break
10+
CHF 442.35
19+
CHF 417.50
29+
CHF 412.53
39+
CHF 407.56
49+
CHF 402.59
74+
CHF 397.62
99+
CHF 372.77
199+
CHF 367.79
249+
CHF 362.82
499+
CHF 357.85
999+
CHF 347.91
Couldn't load pickup availability
Description
Description
|
Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 40mm |
| Weight | 3.7 kg |
