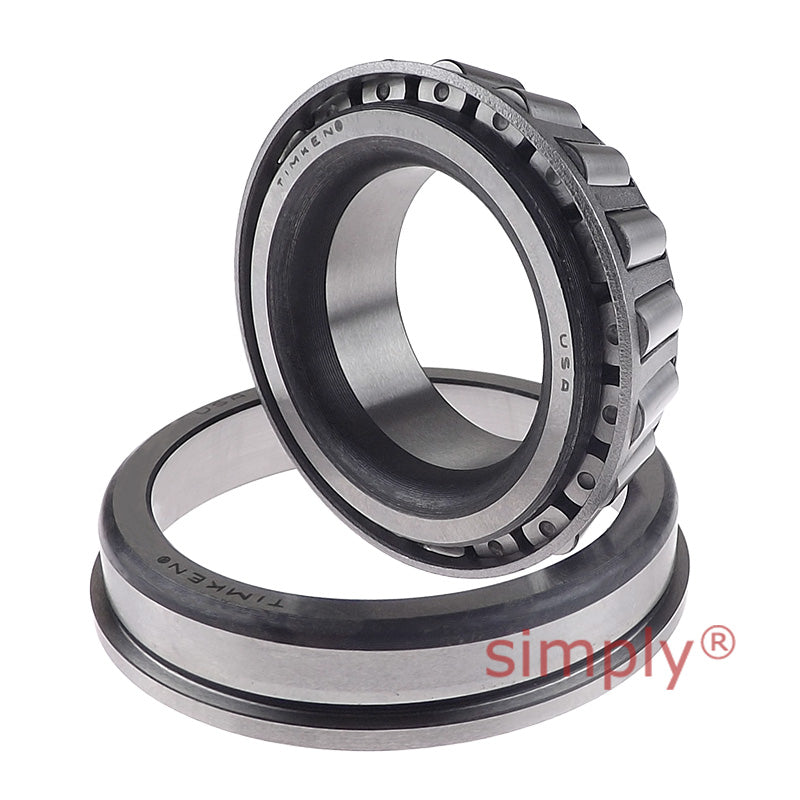

Timken 42690/42620B TSF Single-Row Taper Roller Bearing 3.0625x5x1.187 inch
Timken 42690/42620B TSF Single-Row Taper Roller Bearing 3.0625x5x1.187 inch
Regular price
CHF 688.00
ex VAT
Regular price
Sale price
CHF 688.00
ex VAT
In stock
Price Break
10+
CHF 547.40
20+
CHF 516.64
30+
CHF 510.49
40+
CHF 504.34
50+
CHF 498.19
75+
CHF 492.04
100+
CHF 461.29
200+
CHF 455.14
250+
CHF 448.99
500+
CHF 442.84
1000+
CHF 430.54
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 77.79mm = 3.063 (3-1/16) inch
- Outside Diameter:
- 127mm = 5 inch
- Width:
- 30.16mm = 1.187 (1-3/16) inch
Technical
Technical
| d | 77.788mm = 3.0625 inch |
|---|---|
| D | 127mm = 5 inch |
| T1 | 13.495mm = 0.5313 inch |
| Dynamic (1) C1 | 149000N |
| Factors (5) e | 0.42 |
| Factors (5) Y | 1.43 |
| Dynamic (2) C90 | 38700N |
| Dynamic (2) Ca90 | 27700N |
| Factors (5) K | 1.39 |
| Static Co | 222000N |
| Bearing B | 31mm = 1.2205 inch |
| Bearing C | 22.225mm = 0.875 inch |
| Bearing a(3) | -2.8mm = -0.11 inch |
| Bearing D1 | 133.248mm = 5.246 inch |
| Bearing C2 | 5.558mm = 0.2188 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 85mm = 3.35 inch |
| Shaft backing shoulder diameter db | 91mm = 3.58 inch |
| Housing backing shoulder diameter Da | 124mm = 4.88 inch |
| G1 | 96.2 |
| G2 | 28.6 |
| Cg | 0.1197 |
