SKU: 43131/43319D/X1S43131-TIM
Timken 43131/43319D/X1S43131 TDO Double Outer Race Taper Roller Bearing 1.3125x3.1875x2.1875x1.5625 inch
Timken 43131/43319D/X1S43131 TDO Double Outer Race Taper Roller Bearing 1.3125x3.1875x2.1875x1.5625 inch
Regular price
CHF 497.13
ex VAT
Regular price
Sale price
CHF 497.13
ex VAT
In stock
Price Break
5+
CHF 492.16
10+
CHF 472.27
20+
CHF 462.33
50+
CHF 447.42
100+
CHF 437.47
500+
CHF 412.62
1000+
CHF 347.99
Couldn't load pickup availability
Description
Description

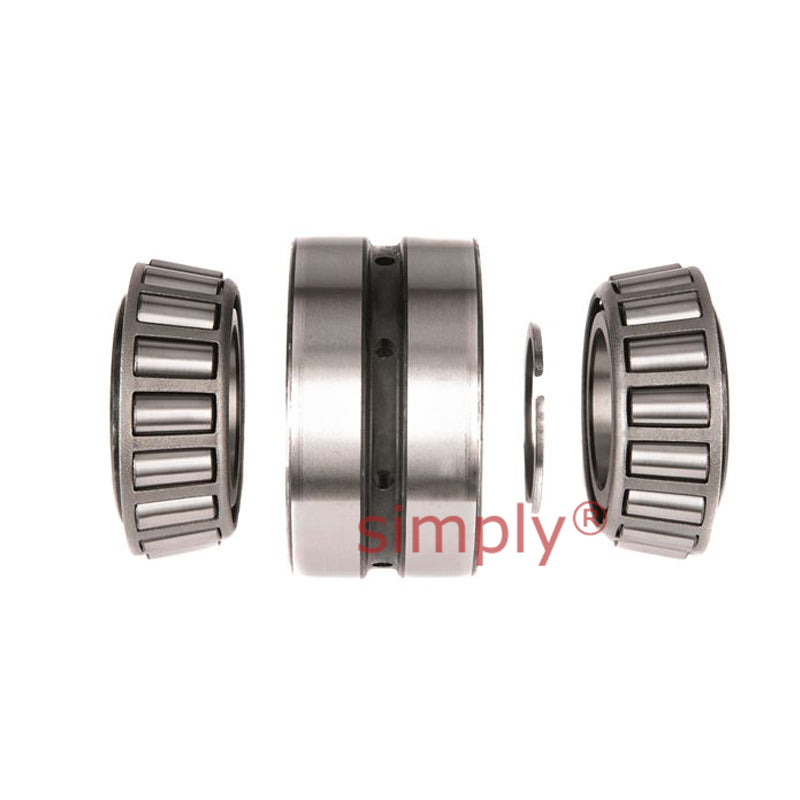

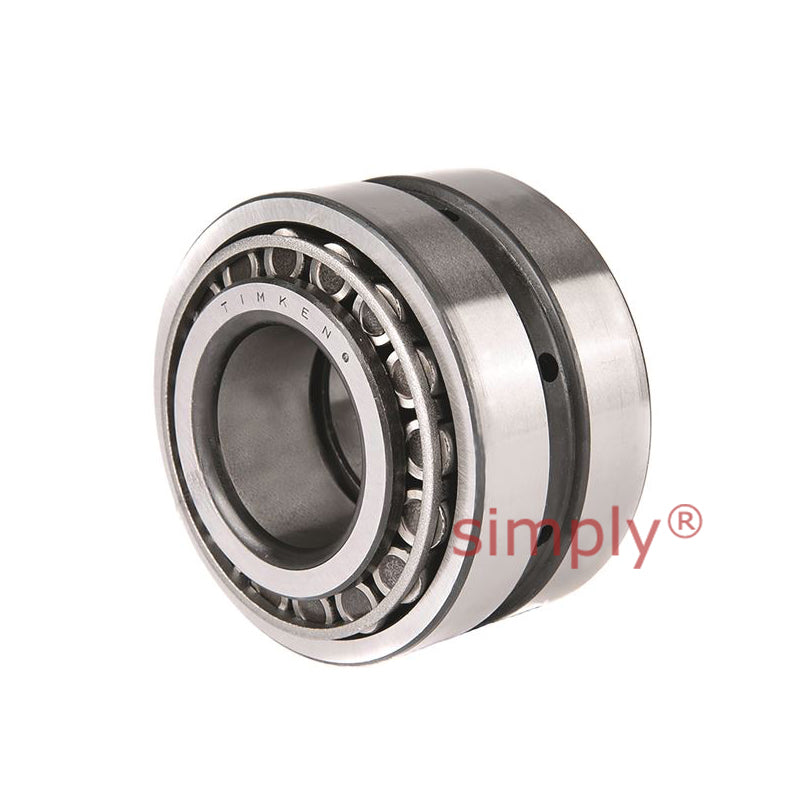

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 33.34mm = 1.3125 inch
- Outside Diameter:
- 80.96mm = 3.1875 inch
- Width:
- 55.56mm = 2.1875 inch
Technical
Technical
| d | 33.338mm = 1.3125 inch |
|---|---|
| D | 80.962mm = 3.1875 inch |
| T | 55.562mm = 2.1875 inch |
| C | 39.688mm = 1.5625 inch |
| Dynamic (1) C1 | 125000N |
| Factors (5) e | 0.67 |
| Factors (5) Y1 | 1.01 |
| Factors (5) Y2 | 1.5 |
| Dynamic (2) C90 | 18600N |
| Dynamic (2) Ca90 | 21300N |
| Dynamic (2) C90(2) | 32400N |
| Factors (5) K | 0.87 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 51mm = 2.01 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 74mm = 2.91 inch |
| G1 | 16.8 |
| G2 | 7.57 |
| Cg | 0.0774 |
