SKU: 48286/48220B-TIM

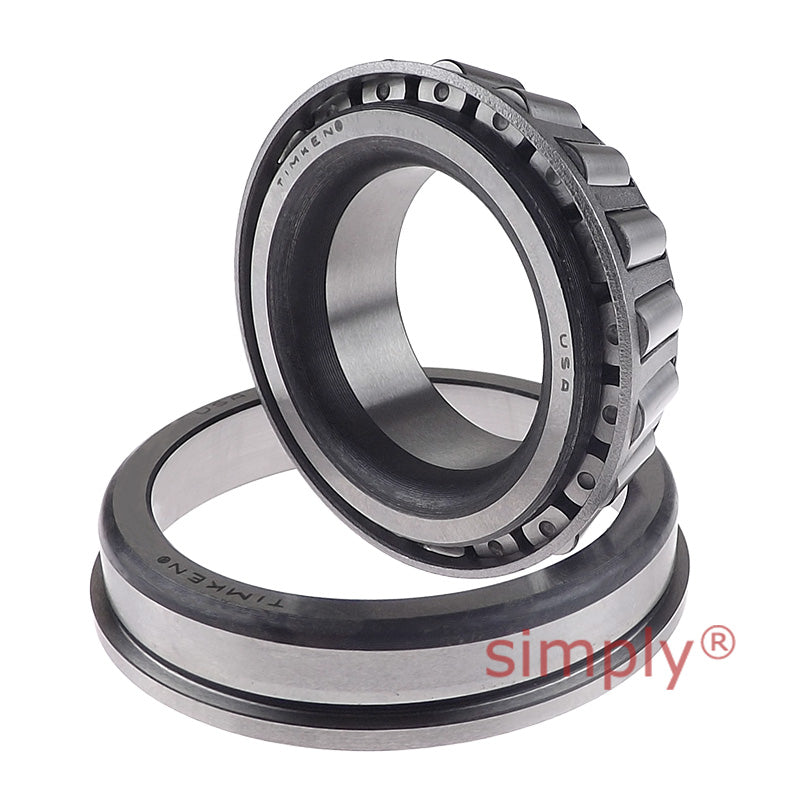

Timken 48286/48220B TSF Single-Row Taper Roller Bearing 4.875x7.1875x1.5625 inch
Timken 48286/48220B TSF Single-Row Taper Roller Bearing 4.875x7.1875x1.5625 inch
Regular price
CHF 1,659.00
ex VAT
Regular price
Sale price
CHF 1,659.00
ex VAT
In stock
Price Break
10+
CHF 1,321.80
20+
CHF 1,247.54
30+
CHF 1,232.69
40+
CHF 1,217.84
50+
CHF 1,202.98
75+
CHF 1,188.13
100+
CHF 1,113.87
200+
CHF 1,099.02
250+
CHF 1,084.17
500+
CHF 1,069.32
1000+
CHF 1,039.62
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 123.83mm = 4.875 (4-7/8) inch
- Outside Diameter:
- 182.56mm = 7.187 (7-3/16) inch
- Width:
- 39.69mm = 1.563 (1-9/16) inch
Technical
Technical
| d | 123.825mm = 4.875 inch |
|---|---|
| D | 182.562mm = 7.1875 inch |
| T1 | 12.7mm = 0.5 inch |
| Dynamic (1) C1 | 248000N |
| Factors (5) e | 0.31 |
| Factors (5) Y | 1.97 |
| Dynamic (2) C90 | 64300N |
| Dynamic (2) Ca90 | 33600N |
| Factors (5) K | 1.91 |
| Static Co | 493000N |
| Bearing B | 38.1mm = 1.5 inch |
| Bearing C | 33.338mm = 1.3125 inch |
| Bearing a(3) | -5.6mm = -0.22 inch |
| Bearing D1 | 188.811mm = 7.4335 inch |
| Bearing C2 | 6.35mm = 0.25 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 133mm = 5.24 inch |
| Shaft backing shoulder diameter db | 139mm = 5.47 inch |
| Housing backing shoulder diameter Da | 177mm = 6.97 inch |
| G1 | 353 |
| G2 | 91.3 |
| Cg | 0.1138 |
