SKU: 4SS316-JUB

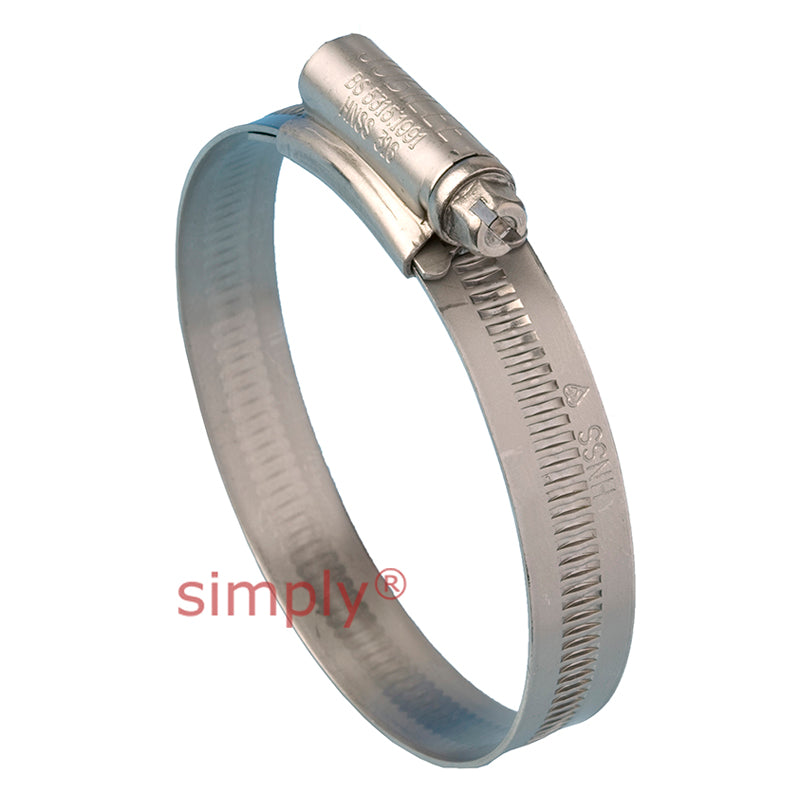

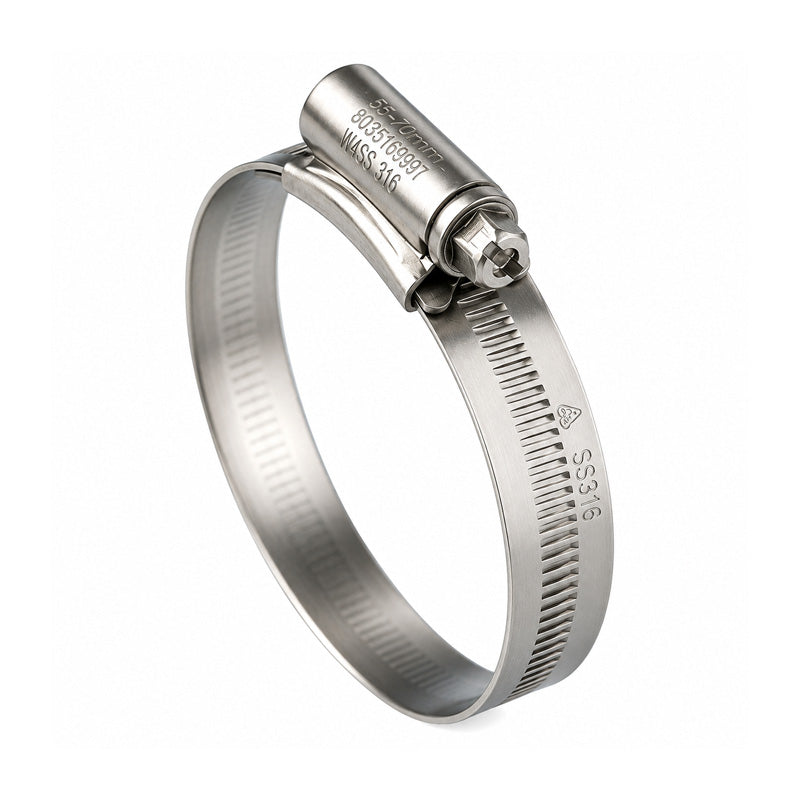

4SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 70mm-90mm Band Width 13mm
4SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 70mm-90mm Band Width 13mm
Regular price
CHF 6.18
ex VAT
Regular price
Sale price
CHF 6.18
ex VAT
In stock
Price Break
5+
CHF 6.12
10+
CHF 5.87
20+
CHF 5.75
50+
CHF 5.56
100+
CHF 5.44
500+
CHF 5.13
1000+
CHF 4.33
Couldn't load pickup availability
Description
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 70mm
- Max Adjustment Range:
- 90mm
Technical
Technical
| BS No. | 90 |
|---|---|
| Adjustment Range | 70mm - 90mm |
| Adjustment Range | 2-3/4 - 3-1/2 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 6.7Nm |
| Maximum Torque | 9Nm |
| Maximum Pressure | 44 Psi |
