SKU: 4T-72212C/72487-NTN

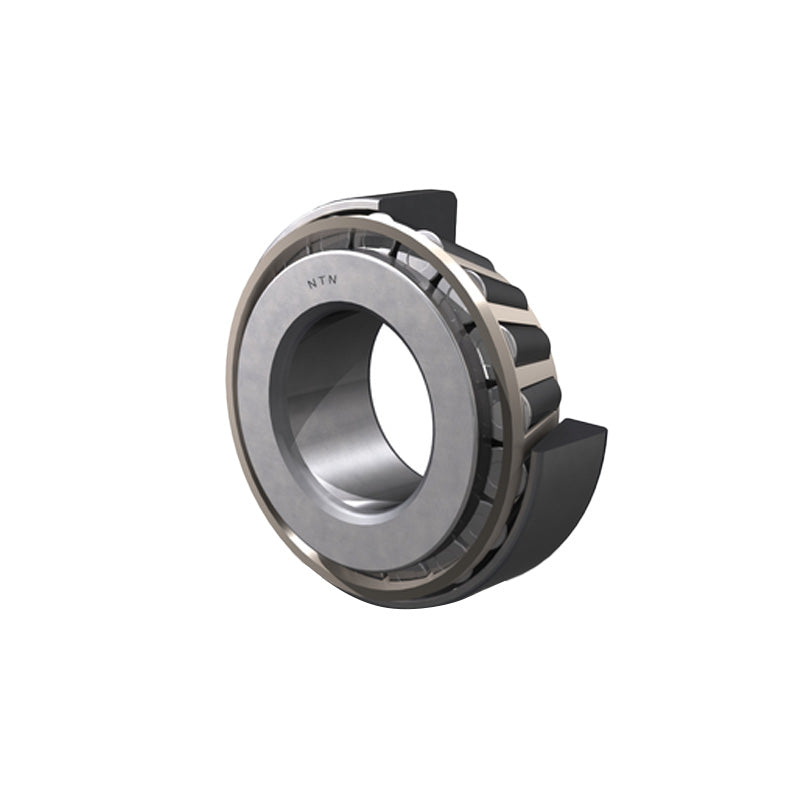

NTN 4T-72212C/72487 Tapered Roller Bearing Cup and Cone Set 2.125x4.875x1.437 inch

NTN 4T-72212C/72487 Tapered Roller Bearing Cup and Cone Set 2.125x4.875x1.437 inch
Regular price CHF 124.00 ex VAT
Regular price Sale price CHF 124.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.04
5+ CHF 92.53
10+ CHF 91.43
25+ CHF 90.33
49+ CHF 89.23
74+ CHF 88.13
99+ CHF 82.62
199+ CHF 81.52
249+ CHF 80.42
499+ CHF 79.32
999+ CHF 77.11
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 2.125 inch (53.975mm)
D (inch) 4.875 inch (123.825mm)
T 1.437 inch (36.512mm)
B 1.291 inch (32.791mm)
C 1 inch (25.40mm)
--- Speeds and loads
C<sub>r</sub> 171kN
C<sub>or</sub> 188kN
Speed in grease 2900rpm
Speed in oil 3900rpm
--- Abutment dimensions
d<sub>a</sub> 79mm
d<sub>b</sub> 67mm
D<sub>a</sub> 102mm
D<sub>b</sub> 116mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> -1.5mm - Indicates a load center at the outside on the end of an inner ring
Constant e 0.74
Axial load factor Y<sub>2</sub> 0.81
Axial load factor Y<sub>0</sub> 0.45
Weight 2.03kg
