SKU: 5/16-UNF-NUT31

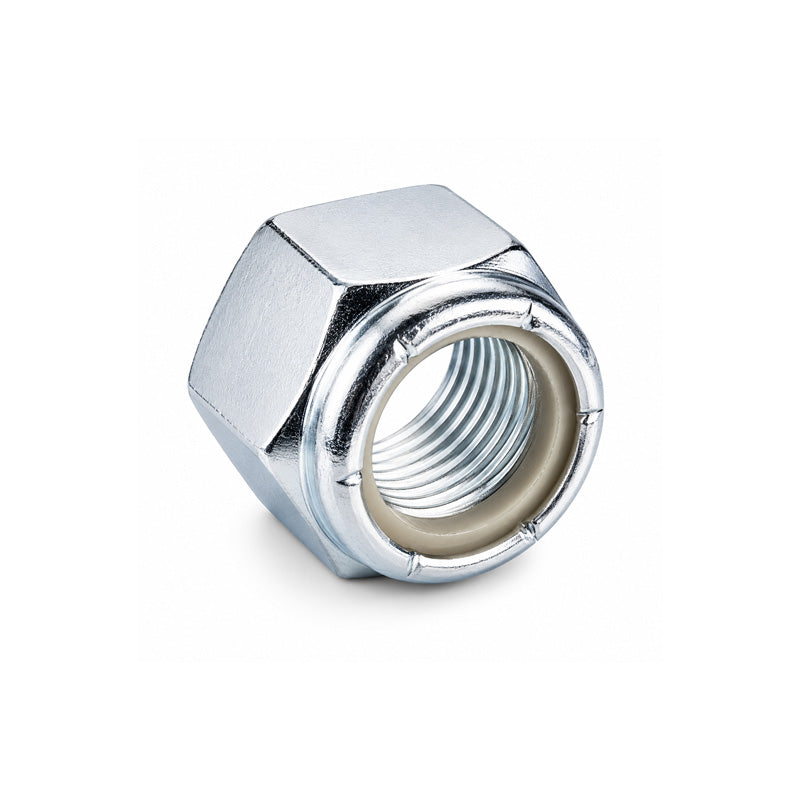

5/16 UNF Bright Zinc Plated High Tensile Steel Nyloc Locking Nut

Name: 5/16 UNF Bright Zinc Plated High Tensile Steel Nyloc Locking Nut
Brand: Gen
SKU: 5/16-UNF-NUT31
Price: 1.00 CHF
Availability: InStock

CHF 1.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 0.43

20+ CHF 0.29

50+ CHF 0.18

100+ CHF 0.13

500+ CHF 0.07

1000+ CHF 0.05

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Nyloc Locking Nuts: With a nylon insert this eliminates the need for a lock washer, yet it still provides the same secure hold, ideal for high vibration applications.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: 5/16 inch UNF
Outside Diameter:: 12.7mm = 0.5 (1/2) inch approx.
Thickness:: 8.38mm = 0.33 inch approx.

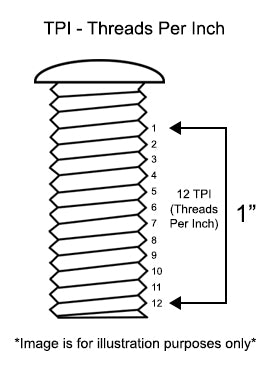

Pitch:: 24 (TPI)

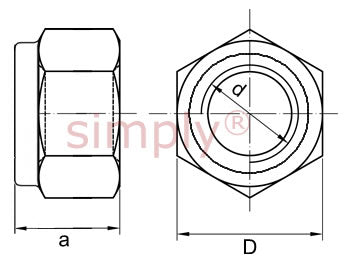

Technical

Inside Diameter (d)	7.93mm = 0.312 (5/16) inch approx.
Outside Diameter (D)	12.7mm = 0.5 (1/2) inch approx.
Width (a)	8.38mm = 0.33 inch approx.
TPI (Threads Per Inch)	24 TPI
