SKU: 5/16X22-BSF-45A-KF

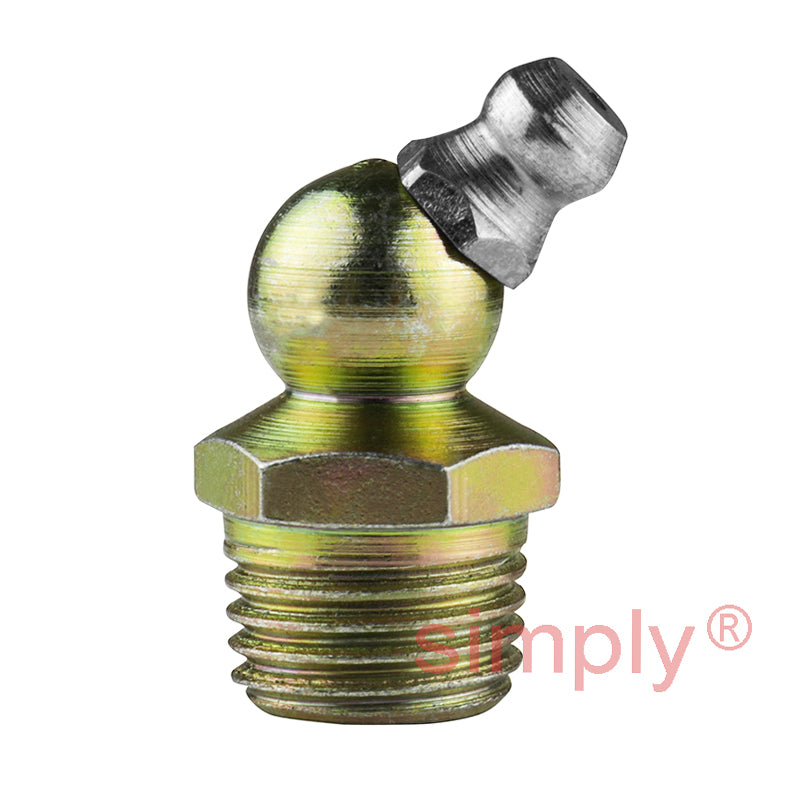

5/16x22 BSF Hardened Mild Steel Zinc Plated 45 deg Hydraulic Grease Nipples - Pack of 500
5/16x22 BSF Hardened Mild Steel Zinc Plated 45 deg Hydraulic Grease Nipples - Pack of 500
Regular price
CHF 204.00
ex VAT
Regular price
Sale price
CHF 204.00
ex VAT
In stock
Price Break
10+
CHF 162.17
19+
CHF 153.06
29+
CHF 151.24
39+
CHF 149.41
49+
CHF 147.59
74+
CHF 145.77
99+
CHF 136.66
199+
CHF 134.84
249+
CHF 133.02
499+
CHF 131.19
999+
CHF 127.55
Description
Description
Hydraulic Grease Nipple Fittings: Kingfisher superior hydraulic fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. The head is made with an annular groove in the plain portion. They are made with a unique mechanical joint for a leak-proof fit. Amongst our range of grease fittings there are fittings of different size, thread type and with or without angles.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- BSF 5/16x22
- Thread Length:
- 5.59mm = 0.22 inch
- Length:
- 22.61mm = 0.89 inch
- Angle:
- 45 deg
Technical
Technical
| --- | BSF Thread (British Standard Fine) |
|---|---|
| Recommended To Fit | BSF 5/16x22 |
| Total Length A | 22.61mm = 0.89 inch |
| Thread Length B | 5.59mm = 0.22 inch |
| Swing Distance C | 8.9mm = 0.35 inch |
| Nipple Angle | 45 deg |
| Required Tool Size (Hex Size) | 3/8 inch |
| Weight | 0.028 kg |
