SKU: 5/16X24-45-UNF-MS-KF

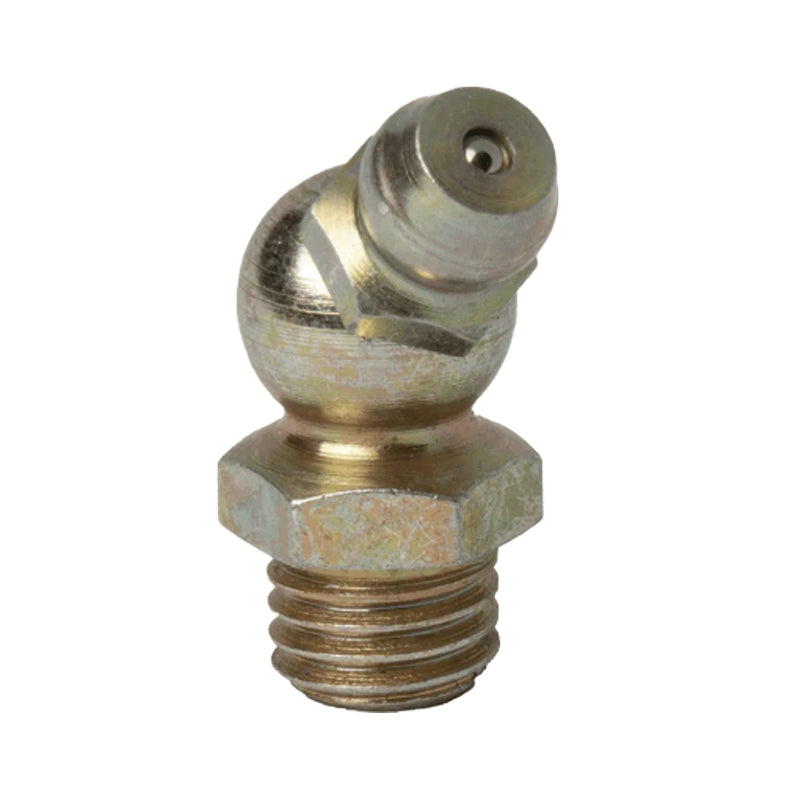

5/16x24 UNF 45 Degrees Mild Steel Hydraulic Grease Nipples - Pack of 500
5/16x24 UNF 45 Degrees Mild Steel Hydraulic Grease Nipples - Pack of 500
Regular price
CHF 298.34
ex VAT
Regular price
Sale price
CHF 298.34
ex VAT
In stock
Price Break
5+
CHF 295.36
10+
CHF 283.42
20+
CHF 277.46
50+
CHF 268.51
100+
CHF 262.54
500+
CHF 247.62
1000+
CHF 208.84
Couldn't load pickup availability
Description
Description
Hydraulic Grease Nipple Fittings: Kingfisher superior hydraulic fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. The head is made with an annular groove in the plain portion. They are made with a unique mechanical joint for a leak-proof fit. Amongst our range of grease fittings there are fittings of different size, thread type and with or without angles.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- UNF 5/16x24
- Thread Length:
- 5.5mm = 0.22 inch
- Length:
- 22.6mm = 0.89 inch
- Angle:
- 45 deg
Technical
Technical
| --- | UNF Thread (Society of Automotive Engineers) |
|---|---|
| Recommended To Fit | UNF 5/16x24 |
| Total Length A | 22.6mm = 0.89 inch |
| Thread Length B | 5.5mm = 0.22 inch |
| Swing Distance C | 8.9mm = 0.35 inch |
| Nipple Angle | 45 Deg |
| Required Tool Size (Hex Size) | 3/8 inch |
