SKU: 50-3-BB-NO30-RENOLD
Renold Blue Box 50-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 5/8 inch Pitch
Renold Blue Box 50-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
CHF 33.11
ex VAT
Regular price
Sale price
CHF 33.11
ex VAT
In stock
Price Break
10+
CHF 29.47
19+
CHF 27.81
29+
CHF 27.48
39+
CHF 27.15
49+
CHF 26.82
74+
CHF 26.49
99+
CHF 24.83
199+
CHF 24.50
249+
CHF 24.17
499+
CHF 23.84
999+
CHF 23.18
Couldn't load pickup availability
Description
Description

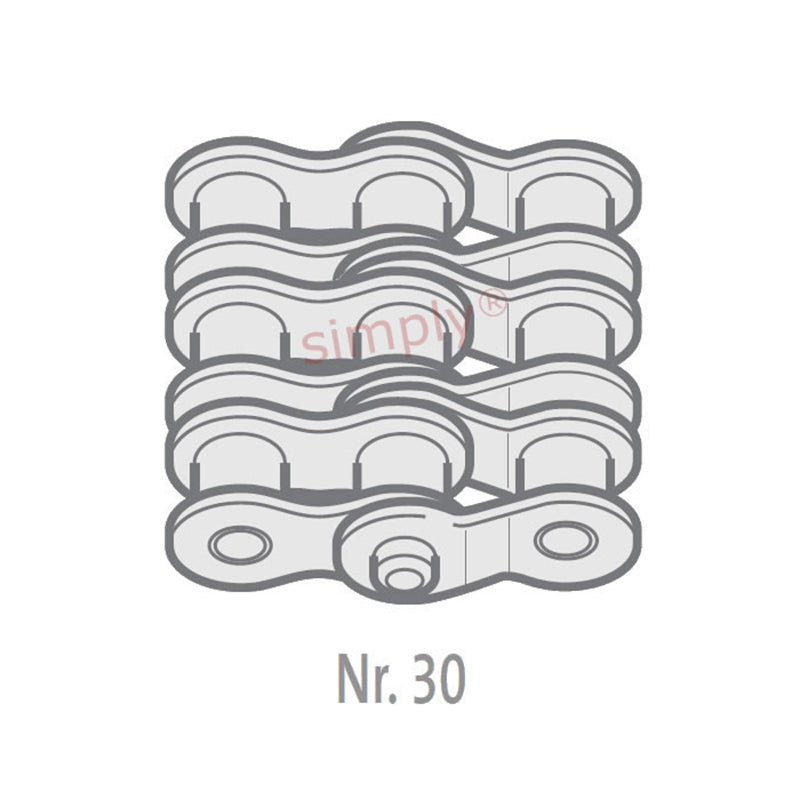

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 56.5mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 0.025kg/m |
