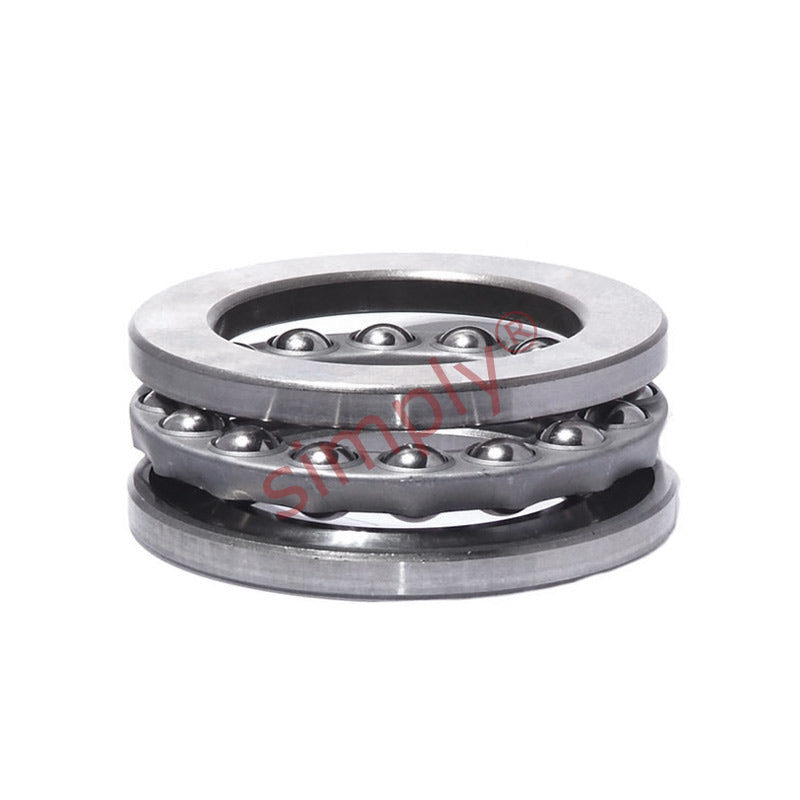

• SKF 51112 Single Thrust Ball Bearing 60x85x17mm
1 1

SKU: 51112-SKF

SKF 51112 Single Thrust Ball Bearing 60x85x17mm

SKF 51112 Single Thrust Ball Bearing 60x85x17mm
CHF 38.00 ex VAT
CHF 38.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 29.86
19+ CHF 28.18
29+ CHF 27.85
39+ CHF 27.51
49+ CHF 27.17
74+ CHF 26.84
99+ CHF 25.16
199+ CHF 24.83
249+ CHF 24.49
499+ CHF 24.16
999+ CHF 23.48
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
17mm
Technical
d 60mm
D 85mm
H 17mm
Dynamic load C 41.6 kN
Static load Co 122 kN
Fatigue load limit Pu 4.55 kN
Minimum load factor A 0.077
Reference speed 3600 rpm
Limiting speed 5000 rpm
Weight 0.2 kg
d1 85mm
D1 62mm
r1r2 min 1mm
da min 75mm
Da max 70mm
ra max 1mm
