SKU: 51122-SKF

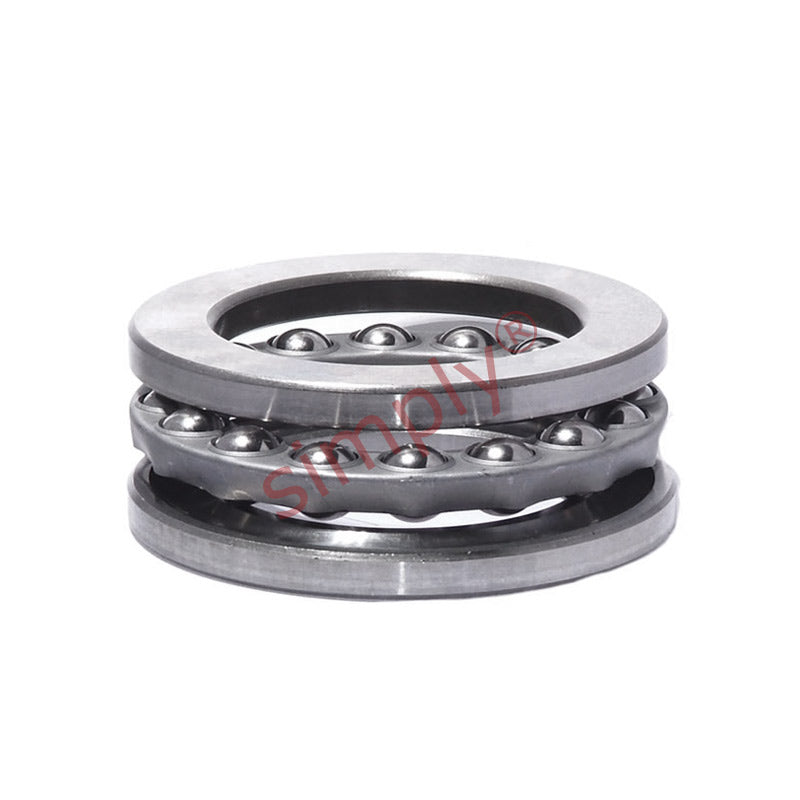

SKF 51122 Single Thrust Ball Bearing 110x145x25mm
SKF 51122 Single Thrust Ball Bearing 110x145x25mm
Regular price
CHF 135.12
ex VAT
Regular price
Sale price
CHF 135.12
ex VAT
In stock
Price Break
10+
CHF 120.26
19+
CHF 113.50
29+
CHF 112.15
39+
CHF 110.80
49+
CHF 109.45
74+
CHF 108.10
99+
CHF 101.34
199+
CHF 99.99
249+
CHF 98.64
499+
CHF 97.29
999+
CHF 94.58
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 145mm
- Width:
- 25mm
Technical
Technical
| d | 110mm |
|---|---|
| D | 145mm |
| H | 25mm |
| Dynamic load C | 87.1 kN |
| Static load Co | 315 kN |
| Fatigue load limit Pu | 10.2 kN |
| Minimum load factor A | 0.52 |
| Reference speed | 2200 rpm |
| Limiting speed | 3200 rpm |
| Weight | 1.05 kg |
| d1 | 145mm |
| D1 | 112mm |
| r1r2 min | 1mm |
| da min | 131mm |
| Da max | 124mm |
| ra max | 1mm |
