SKU: 51207-CDX

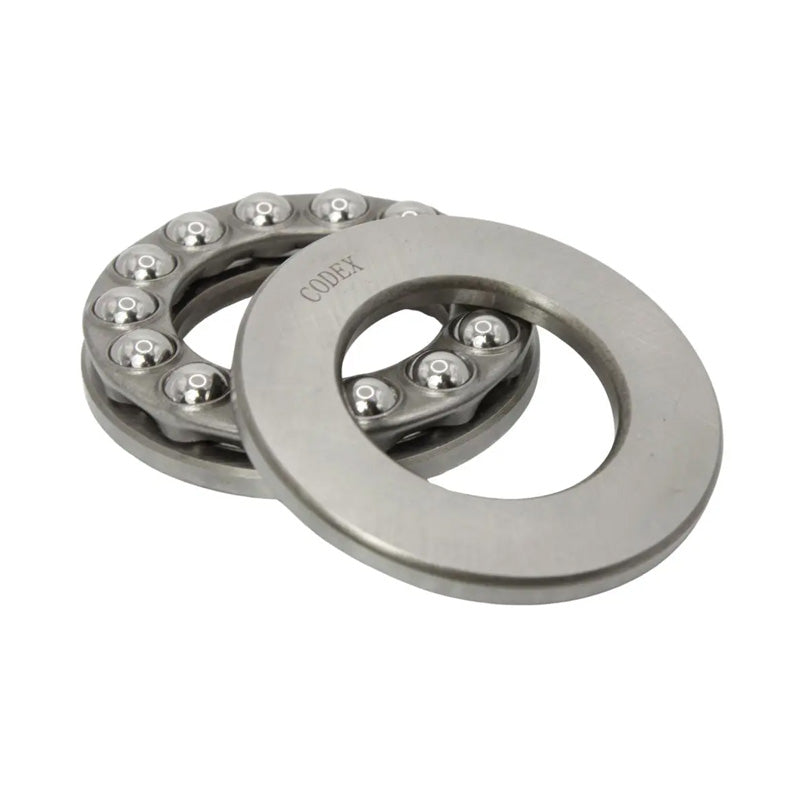

Codex 51207 Single Thrust Ball Bearing 35x62x18mm
Codex 51207 Single Thrust Ball Bearing 35x62x18mm
Regular price
CHF 24.13
ex VAT
Regular price
Sale price
CHF 24.13
ex VAT
In stock
Price Break
10+
CHF 21.48
19+
CHF 20.27
29+
CHF 20.03
39+
CHF 19.79
49+
CHF 19.55
74+
CHF 19.30
99+
CHF 18.10
199+
CHF 17.86
249+
CHF 17.61
499+
CHF 17.37
999+
CHF 16.89
Couldn't load pickup availability
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 18mm
Technical
Technical
| d | 35 |
|---|---|
| D | 62 |
| H | 18 |
| Dynamic Load | 35.1 kN |
| Static Load | 73.5 kN |
| Pu | 2.7 |
| A | 0.028 |
| Ref Speed | 4000 rpm |
| Limiting Speed | 5600 rpm |
| kg | 0.22 |
| d1 | 62 |
| D1 | 37 |
| r1r2 min | 1 |
| da min | 51 |
| Da max | 46 |
| ra max | 1 |
