SKU: 51209-CDX

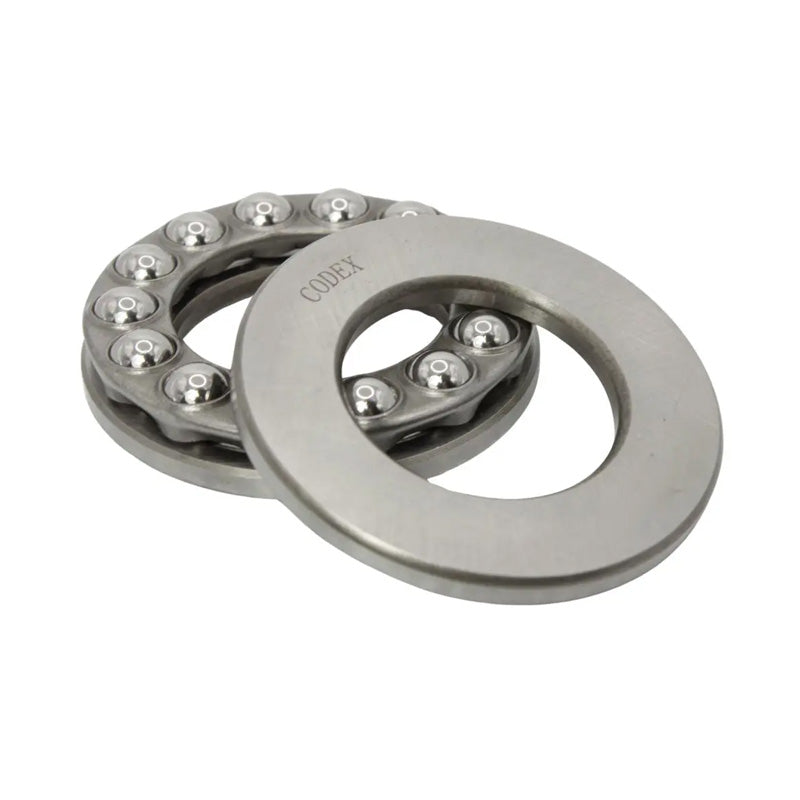

Codex 51209 Single Thrust Ball Bearing 45x73x20mm
Codex 51209 Single Thrust Ball Bearing 45x73x20mm
Regular price
CHF 29.68
ex VAT
Regular price
Sale price
CHF 29.68
ex VAT
In stock
Price Break
10+
CHF 26.42
19+
CHF 24.93
29+
CHF 24.63
39+
CHF 24.34
49+
CHF 24.04
74+
CHF 23.74
99+
CHF 22.26
199+
CHF 21.96
249+
CHF 21.67
499+
CHF 21.37
999+
CHF 20.78
Couldn't load pickup availability
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 73mm
- Width:
- 20mm
Technical
Technical
| d | 45 |
|---|---|
| D | 73 |
| H | 20 |
| Dynamic Load | 39 kN |
| Static Load | 86.5 kN |
| Pu | 3.2 |
| A | 0.038 |
| Ref Speed | 3600 rpm |
| Limiting Speed | 5000 rpm |
| kg | 0.3 |
| d1 | 73 |
| D1 | 47 |
| r1r2 min | 1 |
| da min | 62 |
| Da max | 56 |
| ra max | 1 |
