SKU: 51214-CDX

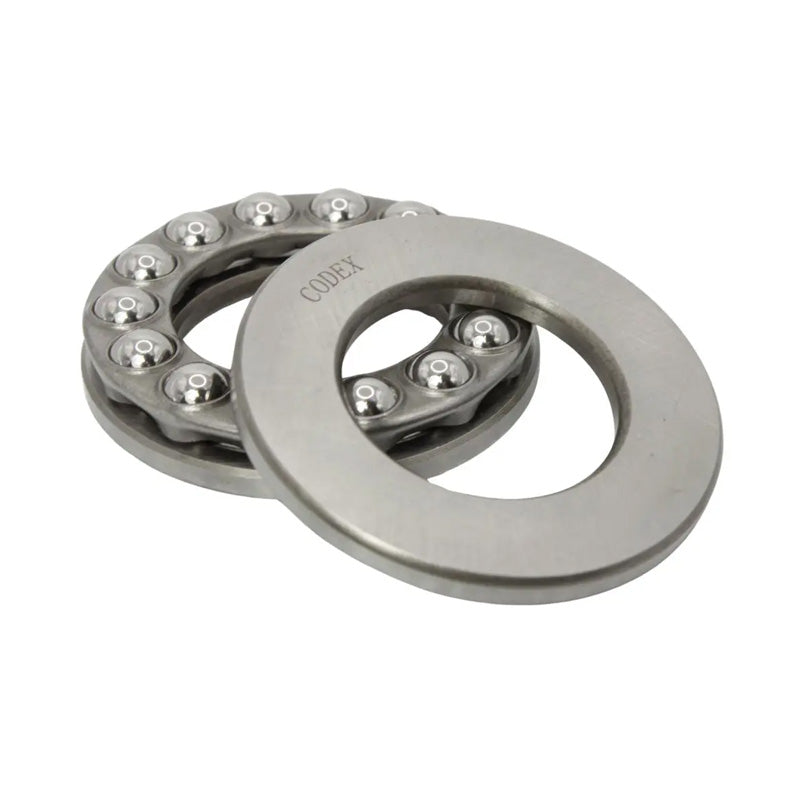

Codex 51214 Single Thrust Ball Bearing 70x105x27mm
Codex 51214 Single Thrust Ball Bearing 70x105x27mm
Regular price
CHF 62.81
ex VAT
Regular price
Sale price
CHF 62.81
ex VAT
In stock
Price Break
10+
CHF 55.90
19+
CHF 52.76
29+
CHF 52.13
39+
CHF 51.50
49+
CHF 50.88
74+
CHF 50.25
99+
CHF 47.11
199+
CHF 46.48
249+
CHF 45.85
499+
CHF 45.22
999+
CHF 43.97
Couldn't load pickup availability
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 105mm
- Width:
- 27mm
Technical
Technical
| d | 70 |
|---|---|
| D | 105 |
| H | 27 |
| Dynamic Load | 65 kN |
| Static Load | 173 kN |
| Pu | 6.4 |
| A | 0.16 |
| Ref Speed | 2600 rpm |
| Limiting Speed | 3600 rpm |
| kg | 0.79 |
| d1 | 105 |
| D1 | 72 |
| r1r2 min | 1 |
| da min | 91 |
| Da max | 84 |
| ra max | 1 |
