SKU: 51216-SKF

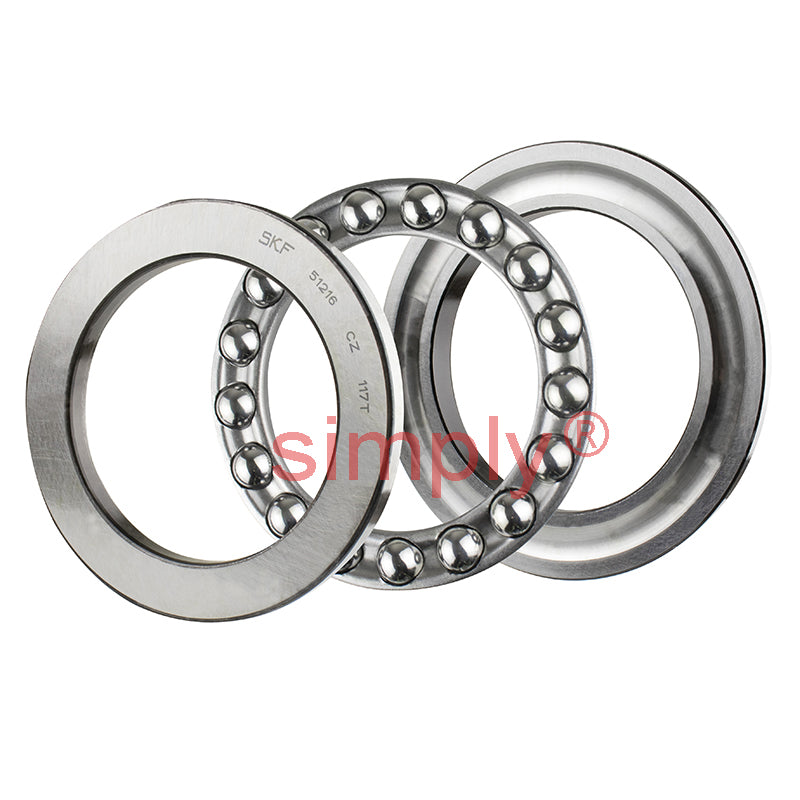

SKF 51216 Single Thrust Ball Bearing 80x115x28mm
SKF 51216 Single Thrust Ball Bearing 80x115x28mm
Regular price
CHF 107.00
ex VAT
Regular price
Sale price
CHF 107.00
ex VAT
In stock
Price Break
10+
CHF 84.68
19+
CHF 79.92
29+
CHF 78.97
39+
CHF 78.02
49+
CHF 77.07
74+
CHF 76.12
99+
CHF 71.36
199+
CHF 70.41
249+
CHF 69.46
499+
CHF 68.51
999+
CHF 66.60
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 115mm
- Width:
- 28mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 115mm |
| H | 28mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 7.65 kN |
| Minimum load factor A | 0.22 |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.91 kg |
| d1 | 115mm |
| D1 | 82mm |
| r1r2 min | 1mm |
| da min | 101mm |
| Da max | 94mm |
| ra max | 1mm |
