SKU: 51217-SKF

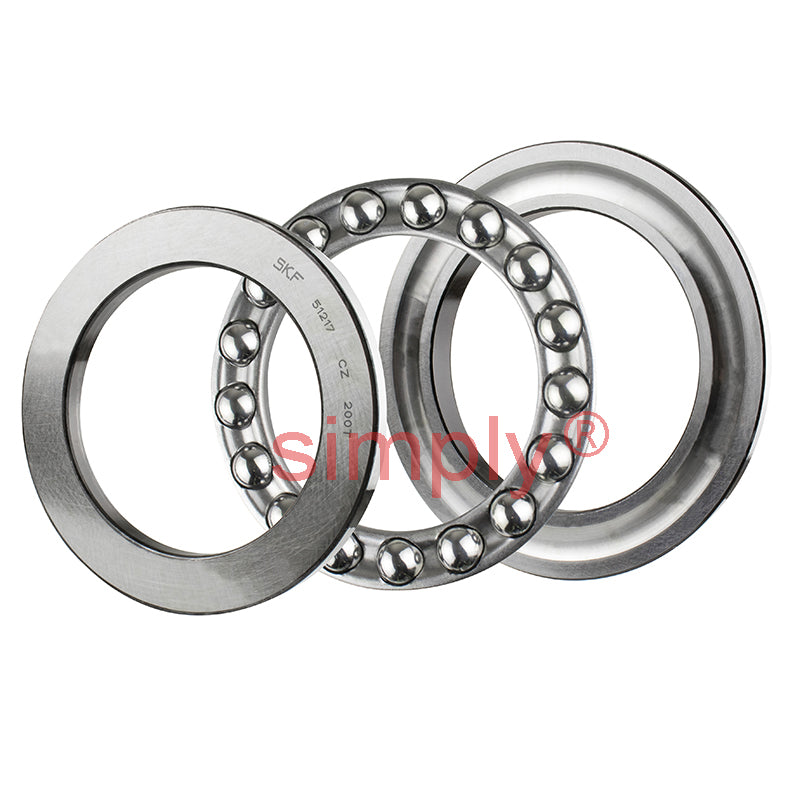

SKF 51217 Single Thrust Ball Bearing 85x125x31mm
SKF 51217 Single Thrust Ball Bearing 85x125x31mm
Regular price
CHF 117.74
ex VAT
Regular price
Sale price
CHF 117.74
ex VAT
In stock
Price Break
10+
CHF 104.79
19+
CHF 98.90
29+
CHF 97.72
39+
CHF 96.55
49+
CHF 95.37
74+
CHF 94.19
99+
CHF 88.31
199+
CHF 87.13
249+
CHF 85.95
499+
CHF 84.77
999+
CHF 82.42
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 31mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 125mm |
| H | 31mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 275 kN |
| Fatigue load limit Pu | 9.8 kN |
| Minimum load factor A | 0.39 |
| Reference speed | 2200 rpm |
| Limiting speed | 3000 rpm |
| Weight | 1.2 kg |
| d1 | 125mm |
| D1 | 88mm |
| r1r2 min | 1mm |
| da min | 109mm |
| Da max | 101mm |
| ra max | 1mm |
